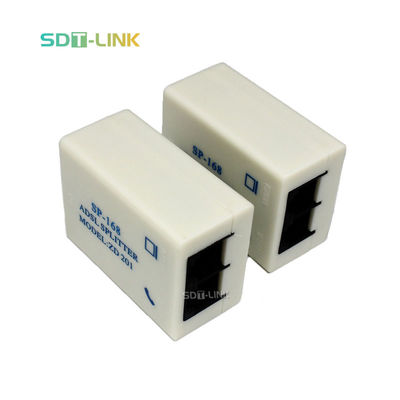

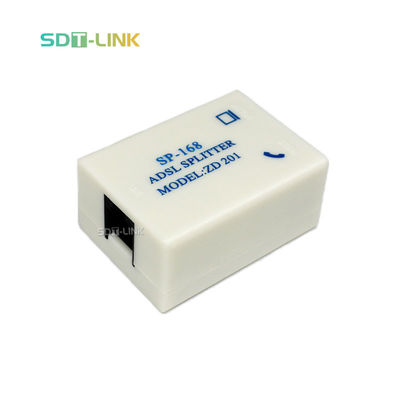

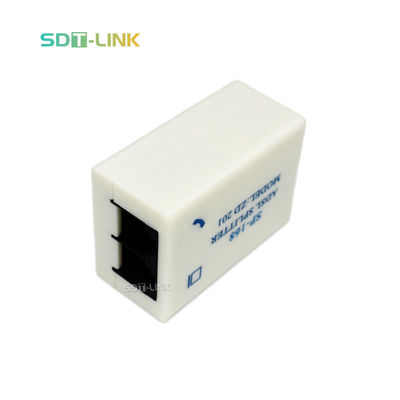

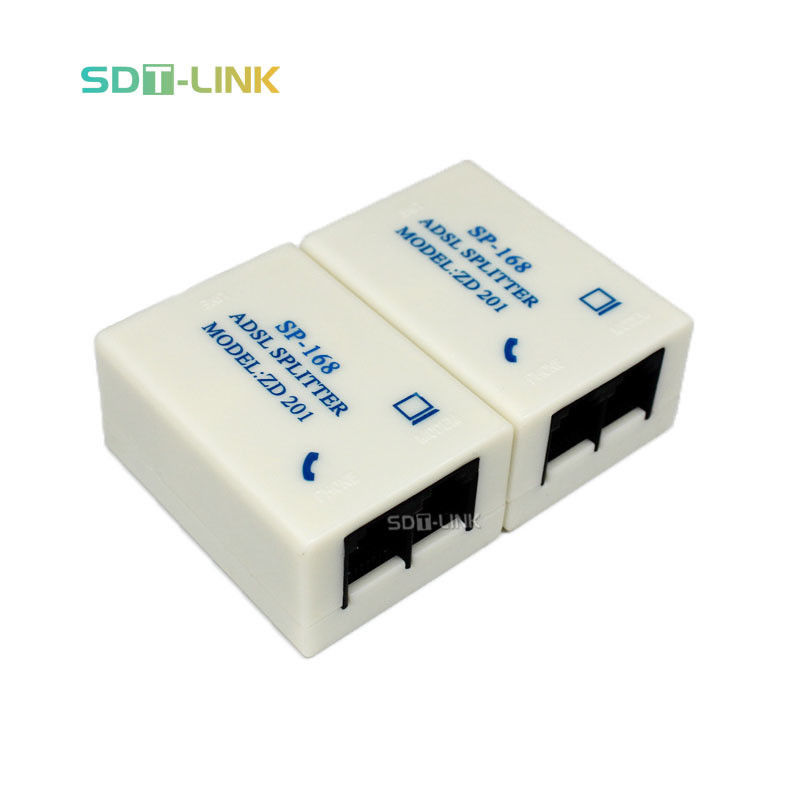

ADSL RJ11 RJ45 Splitter 2-Port Female 60W 4.4MHz

ADSL RJ11 RJ45 Splitter 2-Port Female 60W 4.4MHz
ADSL RJ11 RJ45 Splitter 2-Port Female 60W 4.4MHz
ADSL RJ11 RJ45 Splitter 2-Port Female 60W 4.4MHz ADSL RJ11 RJ45 Splitter 2-Port Female 60W 4.4MHz ADSL RJ11 RJ45 Splitter 2-Port Female 60W 4.4MHz ADSL RJ11 RJ45 Splitter 2-Port Female 60W 4.4MHz ADSL RJ11 RJ45 Splitter 2-Port Female 60W 4.4MHz ADSL RJ11 RJ45 Splitter 2-Port Female 60W 4.4MHz ADSL RJ11 RJ45 Splitter 2-Port Female 60W 4.4MHz

Large Image :  ADSL RJ11 RJ45 Splitter 2-Port Female 60W 4.4MHz

Product Details:
Place of Origin: Hunan, China
Brand Name: kuncan
Model Number: SDT-ADS121
Payment & Shipping Terms:
Minimum Order Quantity: 100 pieces
Price: $0.79/pieces 100-499 pieces
Packaging Details: 1pcs/bag <br>500pcs/box
Contact Now

ADSL RJ11 RJ45 Splitter 2-Port Female 60W 4.4MHz

Description
Type: ASDL Splitter Port: 2 Port US ADSL
Gender: Female Category: RJ45/RJ11 Telephone Adapter
Name: Telephone/Computer Material: ABS Plastic
Power Frequency: 60KHz Average Power: 60 Watts
Color: White Band Width: 4.4MHz
Application: Teleommunication
Highlight:

60 Watts Broadband Splitter

,

4.4MHz Broadband Splitter

,

RJ45 Broadband Splitter

ADSL RJ11 RJ45 Splitter 60W 4.4MHz 2-Port Female
Product Specifications
Attribute Value
Type ASDL Splitter
Port 2 port US ADSL
Gender Female
Category RJ45/RJ11 Telephone Adapter
Material ABS Plastic
Power Frequency 60KHz
Average Power 60 Watts
Color White
Band width 4.4MHz
Application Telecommunication
Core Features
  • ISP-Grade Solutions for Telephone Line Broadband Connections
  • ADSL2+ Certified IEEE 518 Noise Standard
  • Gold Plated Contacts IDC/Punchdown Terminations
  • Connector Type: Female RJ11 (6P2C) *2, RJ45 (8P8C) *1
  • Frequency Separation: 4kHz cut-off (±0.5kHz tolerance)
  • POTS Insertion Loss: ≤ 0.3dB @ 1kHz
  • ADSL Bandwidth: Up to 2.2MHz (ADSL2+ compatible)
  • Contact Resistance: ≤ 25mΩ (initial)
  • Surge Protection: 1kV/1kA (8/20μs waveform)
Compatible Standards
  • ITU-T G.992.5 (ADSL2+)
  • ANSI T1.413 Issue 2
  • ETSI TS 101 952-1
  • IEEE 518 (Noise Control)
  • BS 6312 (UK Telephone Sockets)
  • FCC Part 68 (US Telecom)
Standard Installation Wiring
WALL JACK ────[FILTER]───-> PHONE │ └──────-> MODEM
Color Code:
- Line 1: Red (Ring), Green (Tip)
- Line 2: Black (Ring), Yellow (Tip)

Note: Always disconnect DSL modem before wiring
Regional Compatibility
North America
  • AT&T U-verse filters
  • CenturyLink DSL modems
  • Comcast Xfinity Voice
Europe/UK
  • BT Openreach faceplates
  • Deutsche Telekom TAE ports
  • Orange France splitters
Asia-Pacific
  • NTT Docomo Japan
  • Singtel ADSL2+
  • Telstra Australia
Why Choose This ADSL Splitter?
Enhanced Call Clarity & Internet Speeds
Maintains uninterrupted broadband by filtering out phone line noise and static. Prevents slowdowns, disconnections, or voice echo in landline calls.
Universal Compatibility
Works with standard RJ11 telephone jacks and RJ45 modem connections (for ADSL/VDSL). Supports most DSL modems, cordless phones, and fax machines in home/office setups.
Plug-and-Play Installation
No setup required—just connect to your phone socket and split signals for modem + phone. Compact design fits discreetly behind desks or wall sockets.
Stable Signal Transmission
High-quality LC circuit filtering minimizes cross-talk and interference. Gold-plated connectors ensure reliable signal transfer with minimal loss.
The RJ11 RJ45 ADSL Splitter is an essential connectivity device that separates your telephone and broadband signals, eliminating interference for faster internet speeds and clearer voice calls. Whether you use ADSL, VDSL, or traditional landline services, this compact splitter ensures both your phone and modem receive optimal performance without signal degradation.
