Technical Specifications

 Product Introduction

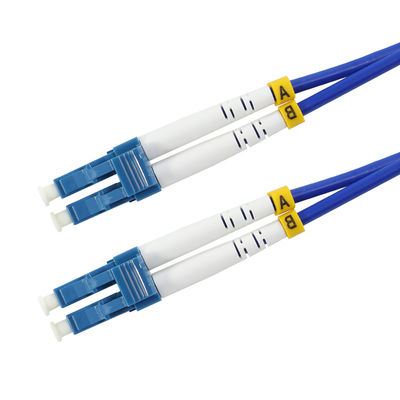

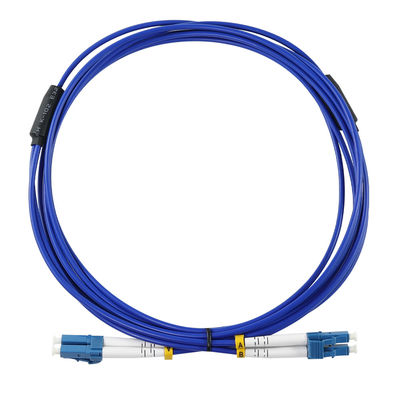

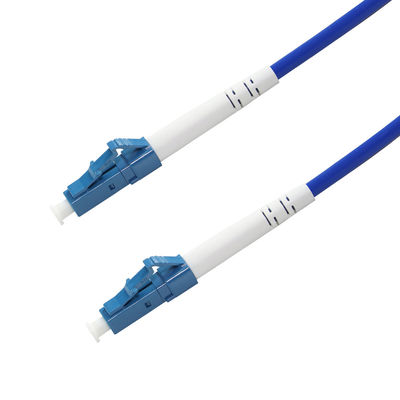

The LC to LC Fiber Optic Patch Cable is a high-precision jumper designed for fast, low-loss data transmission in modern communication systems. With LC connectors on both ends, it provides excellent connectivity for telecom, data centers, FTTx, and enterprise network applications. Available in singlemode and multimode, and simplex or duplex structures, it fits a wide range of installation needs.

 Key Specs

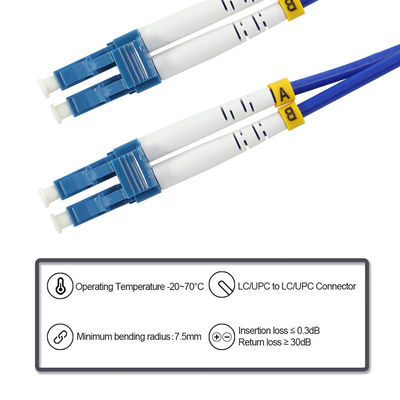

• Connector: LC to LC (UPC or APC polish available)

• Fiber Type: Singlemode OS2 / Multimode OM1–OM4

• Speed Support: Up to 10G/40G/100G depending on mode

• Standard Lengths: 1m, 2m, 3m, 5m, 10m (custom lengths supported)

• Jacket Material: Flame-retardant PVC or LSZH

• High Precision Polish: Low loss, high return loss

 Color & Size Options

• Cable Diameter: 2.0mm / 3.0mm

• Structure: Simplex / Duplex

• Length Range: 0.5m ~ 50m or custom

 Product Features

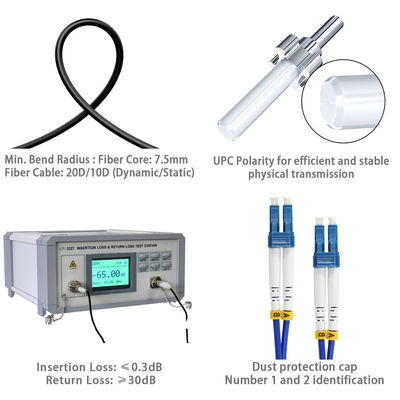

• Low Insertion Loss and High Return Loss

• Flexible Jacket for Easy Routing

• Color-Coded for Easy Identification

• Stable Signal Transmission for High-Speed Networks

• Suitable for Indoor Structured Cabling and Optical Networking

 Compatible Scenarios

• Optical Distribution Frames (ODFs)

• Telecom Base Stations

• Enterprise LAN / SAN Networks

• Fiber to the Home (FTTH/FTTx)

• Data Centers and Server Rooms

• Test Equipment and Optical Switches

 Safety & Usage Guidelines

• Avoid excessive bending (follow fiber minimum bend radius)

• Clean connector ends before use with proper tools

• Store in a dry, dust-free environment

• Not suitable for outdoor use without protection
