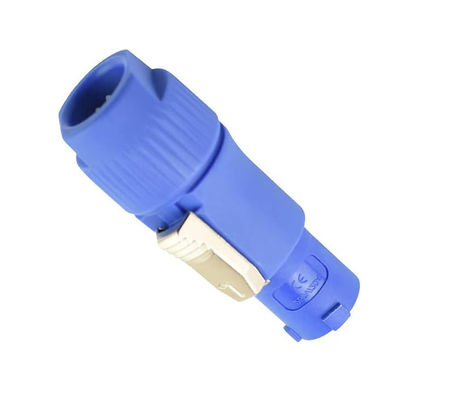

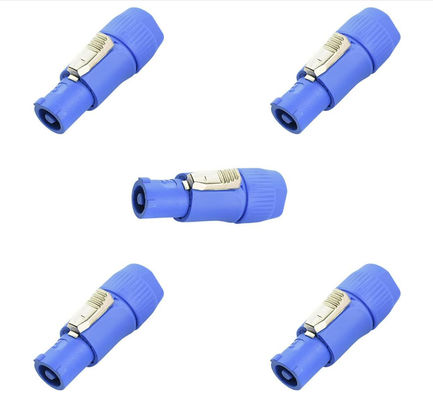

Neutrik NAC3FCA PowerCON A-Type Female Connector 20A 250V AC Blue

Neutrik NAC3FCA PowerCON A-Type Female Connector 20A 250V AC Blue
Neutrik NAC3FCA PowerCON A-Type Female Connector 20A 250V AC Blue Neutrik NAC3FCA PowerCON A-Type Female Connector 20A 250V AC Blue Neutrik NAC3FCA PowerCON A-Type Female Connector 20A 250V AC Blue Neutrik NAC3FCA PowerCON A-Type Female Connector 20A 250V AC Blue Neutrik NAC3FCA PowerCON A-Type Female Connector 20A 250V AC Blue

Large Image :  Neutrik NAC3FCA PowerCON A-Type Female Connector 20A 250V AC Blue

Product Details:
Place of Origin: China
Brand Name: KUNCAN
Model Number: KC-NAC3FCA
Payment & Shipping Terms:
Minimum Order Quantity: 500 pieces
Price: $0.66/pieces 500-999 pieces
Packaging Details: PE Bag
Delivery Time: 16Days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 1000PCS/Per Week
Contact Now

Neutrik NAC3FCA PowerCON A-Type Female Connector 20A 250V AC Blue

Description
Type: Lock Type 3-pin AC Power Connector Function: Used As The Power Input Terminal For Device Panels, Providing Safe And Reliable Power Connections
Color: Blue (representing Power Input) Rated Current/voltage: 20A/250V AC
Interface Type: 3/16 "flat Plug Terminal Installation Method: Front Panel Installation, D-hole
Protection Level: IP20 Material: Copper Alloy Contact Piece, Polyamide Shell
Caution: Live Connection Or Disconnection Is Not Supported
Highlight:

20A PowerCON A-type female head

,

blue PowerCON A-type female head

NAC3FCA PowerCON A-type Female Connector

High-performance power input connector designed for stage lighting, sound systems, and temporary power distribution systems. Features a locking mechanism for reliable 20A 250V AC power transmission.

Key Features
  • Locking 3-pin AC power connector for secure connections
  • Blue color indicates power input function
  • Rated for 20A/250V AC power transmission
  • 3/16" flat plug terminal interface
  • Front panel installation with D-hole mounting
  • IP20 protection level for indoor use
  • Durable construction: copper alloy contacts with polyamide shell
Neutrik NAC3FCA PowerCON A-Type Female Connector 20A 250V AC Blue 0
Technical Specifications
Parameter Description
Product Name Neutrik NAC3FCA PowerCON A-type Female Connector (Blue, Power Input)
Connector Type PowerCON A-type (Blue), Power Input
Rated Current Maximum 20A
Rated Voltage 250V AC
Material Copper alloy contacts, polyamide housing
Ingress Protection IP20 (for indoor environments)
Dimensions 44.8mm x 25mm x 25mm (L x W x H)
Mounting Type Panel mount (D-type hole)
Connection Type Screw terminal connection
Certifications UL, VDE, cUL certifications
Applications
Application Description
Stage Lighting Systems Power input for stage equipment, ensuring stable power supply
Sound Systems Power distribution in audio equipment for safe connections
Temporary Power Supply Events and outdoor activities requiring temporary power distribution
Power Distribution Boxes Connect multiple devices to a single power source
Frequently Asked Questions
Question Answer
Is this connector compatible with 24V systems? No. Designed for 250V AC voltage, suitable for 12V and 110V systems.
How do I install this connector? Panel-mount type that fixes into D-type hole with screws.
Is this connector waterproof? IP20 rating for indoor use only, not for wet environments.
Caution: This connector does not support live connection or disconnection.
