Place of Origin:

Guangdong, China

Brand Name:

KUNCAN

Model Number:

KC-True1-01

Minimum Order Quantity:

500 pieces

Price:

$2.45/pieces 500-2999 pieces

Packaging Details:

75pcs/Carton

Delivery Time:

15days

Payment Terms:

L/C,D/A,D/P,T/T,Western Union

Supply Ability:

1000PCS/Per Week

Type:

AC Power Cord

Application:

Home Appliance

Male End Type:

NEMA

Female End Type:

IEC

Plug Standard:

Other

IP Level:

IP54

AC Outlets Quantity:

1 Outlets

Cable Length:

Name:

US To PowerCON Connector

Cable:

SVT 18AWG/ SJT 14AWG/3C

Connector:

True1

Rating Voltage:

125V

Rating Current:

10A/15A

Conductor:

Copper,CCA,CCS

Jacket:

PVC

Colour:

Black

Length:

1m-10m

Highlight:

NEMA 5-15P Power Cable

Professional Audio Power Cable

NAC3FCA Power Cable

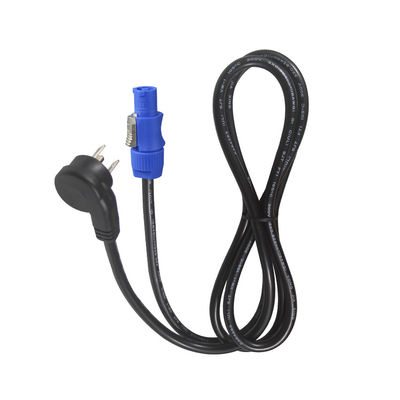

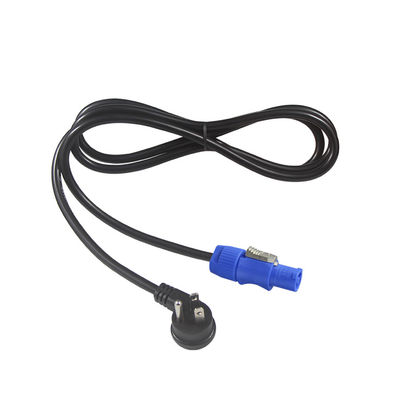

NEMA 5-15P to PowerCon NAC3FCA Cable

Touring-grade 15A/125V locking power for pro AV

Connectors: NEMA 5-15P (Standard US Plug) to Neutrik NAC3FCA (Blue)
Current: 15A continuous / 125V (1875W max)
Cable: 14AWG SJTOW jacket (weather/abrasion resistant)
Locking: Twist-lock prevents accidental disconnection
Use Case: Touring audio, LED walls, portable power distros

Technical Specifications

Input Connector	NEMA 5-15P (Standard US 3-Prong)
Output Connector	Neutrik PowerCon NAC3FCA (Blue, Male)
Voltage Rating	125V AC
Wire Gauge	14AWG (2.08mm²) copper
Jacket Material	SJTOW (Oil/UV resistant)

Why Choose PowerCon Over Standard Cables?

PowerCon NAC3FCA

Locking mechanism prevents pull-outs
IP54 rating when mated (dust/moisture resistant)
360° strain relief
Standard in pro audio/lighting

Standard IEC

Easily disconnects if tripped over
No environmental sealing
Weak strain relief
Common in consumer gear

Frequently Asked Questions

Can I connect NAC3FCA to a PowerCon TRUE1?

No - NAC3FCA (blue) is the original PowerCon standard and is not compatible with TRUE1 (gray) connectors. They use different keying patterns to prevent accidental mating.

Is this cable suitable for outdoor use?

When properly mated, the NAC3FCA connection is IP54 rated. However, the NEMA 5-15P end is not waterproof. For permanent outdoor installations, we recommend

American Power Cable AC 14AWG NEMA5-15P to PowerCon NAC3FCA Power Cable for LED Screen

Product Description

Product type	US 3Pin with PowerCON Connector
Plug	Waterproof connector
Rating Current	20A
Rating Voltage	250V
Material	pvc/rubber jacket,bare copper
End connector	IEC 60320 C7,IEC C5,IEC C13;Stripped end ;Tinned end
Color	Black.white,as your request
length	1m,2m,3m,5m,10m,as per your request
Application	Home Appliance
Sample	2-3pcs
OEM/ODM	available

Available Wire Styles:

Cord Type	Gauge/ # Conductors
SVT SJT	3C/18AWG; 3C/16AWG/14AWG
SJTW	3C/18AWG;3C/16AWG/14AWG
SPT-1;SPT-2;NISPT-2	18AWG/2C
