NEMA 5-15P to PowerCon NAC3FCA 14AWG 3M Power Cord

Large Image : NEMA 5-15P to PowerCon NAC3FCA 14AWG 3M Power Cord

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	KUNCAN
Model Number:	KC-True1-01

Payment & Shipping Terms:

Minimum Order Quantity:	500 pieces
Price:	$2.45/pieces 500-2999 pieces
Packaging Details:	75pcs/Carton
Delivery Time:	15days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	1000PCS/Per Week

Contact Now

NEMA 5-15P to PowerCon NAC3FCA 14AWG 3M Power Cord

Description

Type:	AC Power Cord	Application:	Home Appliance
Male End Type:	NEMA	Female End Type:	IEC
Plug Standard:	Other	IP Level:	IP54
AC Outlets Quantity:	1 Outlets	Cable Length:	3M
Name:	US To PowerCON Connector	Cable:	SVT 18AWG/ SJT 14AWG/3C
Connector:	True1	Rating Voltage:	125V
Rating Current:	10A/15A	Conductor:	Copper,CCA,CCS
Jacket:	PVC	Colour:	Black
Length:	1m-10m
Highlight:	NEMA 5-15P Power Cable , Professional Audio Power Cable , NAC3FCA Power Cable

NEMA 5-15P to PowerCon NAC3FCA Cable 14AWG 3M Pro Audio Power Cord

Key Features

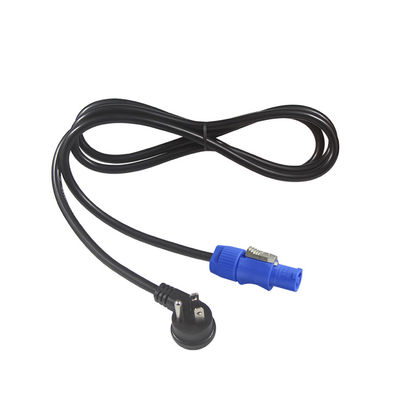

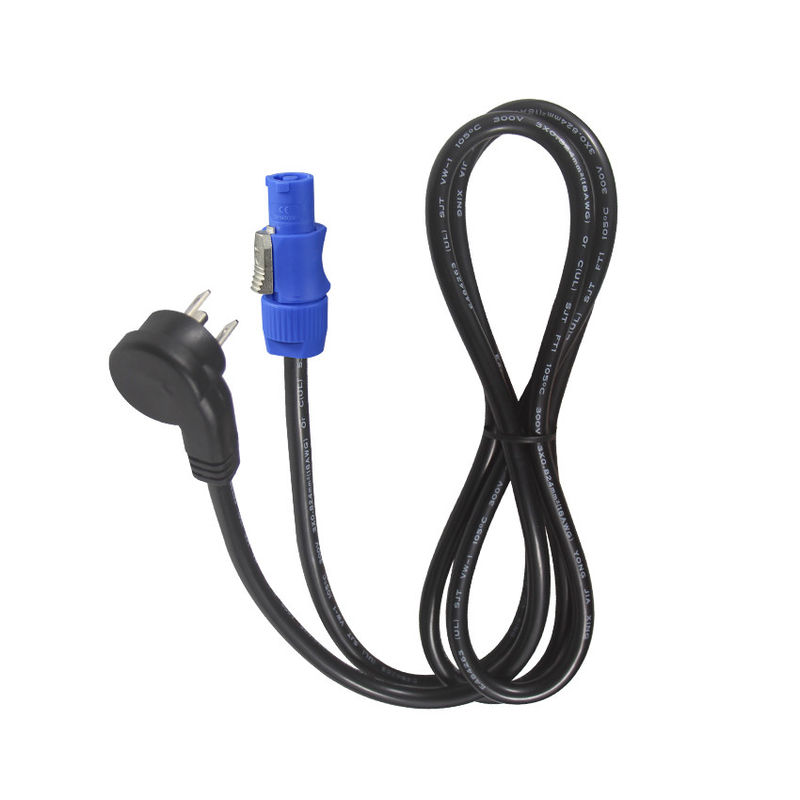

Connectors: NEMA 5-15P (Standard US Plug) to Neutrik NAC3FCA (Blue)
Current: 15A continuous / 125V (1875W max)
Cable: 14AWG SJTOW jacket (weather/abrasion resistant)
Locking: Twist-lock prevents accidental disconnection
Use Case: Touring audio, LED walls, portable power distros

Technical Specifications

Attribute	Value
Type	AC Power Cord
Input Connector	NEMA 5-15P (Standard US 3-Prong)
Output Connector	Neutrik PowerCon NAC3FCA (Blue, Male)
Voltage Rating	125V AC
Current Rating	10A/15A
Wire Gauge	14AWG (2.08mm²) copper
Jacket Material	SJTOW (Oil/UV resistant)
IP Rating	IP54 when mated
Cable Length	3M
Color	Black

Why Choose PowerCon Over Standard Cables?

PowerCon NAC3FCA

Locking mechanism prevents pull-outs
IP54 rating when mated (dust/moisture resistant)
360° strain relief
Standard in pro audio/lighting

Standard IEC

Easily disconnects if tripped over
No environmental sealing
Weak strain relief
Common in consumer gear

Frequently Asked Questions

Can I connect NAC3FCA to a PowerCon TRUE1?

No - NAC3FCA (blue) is the original PowerCon standard and is not compatible with TRUE1 (gray) connectors. They use different keying patterns to prevent accidental mating.

Is this cable suitable for outdoor use?

When properly mated, the NAC3FCA connection is IP54 rated. However, the NEMA 5-15P end is not waterproof. For permanent outdoor installations, we recommend additional weather protection.

Available Options

Option	Available Choices
Color	Black, white, or custom
Length	1m, 2m, 3m, 5m, 10m (custom lengths available)
Cord Type	SVT/SJT (3C/18AWG, 3C/16AWG, 3C/14AWG), SJTW, SPT-1, SPT-2, NISPT-2
