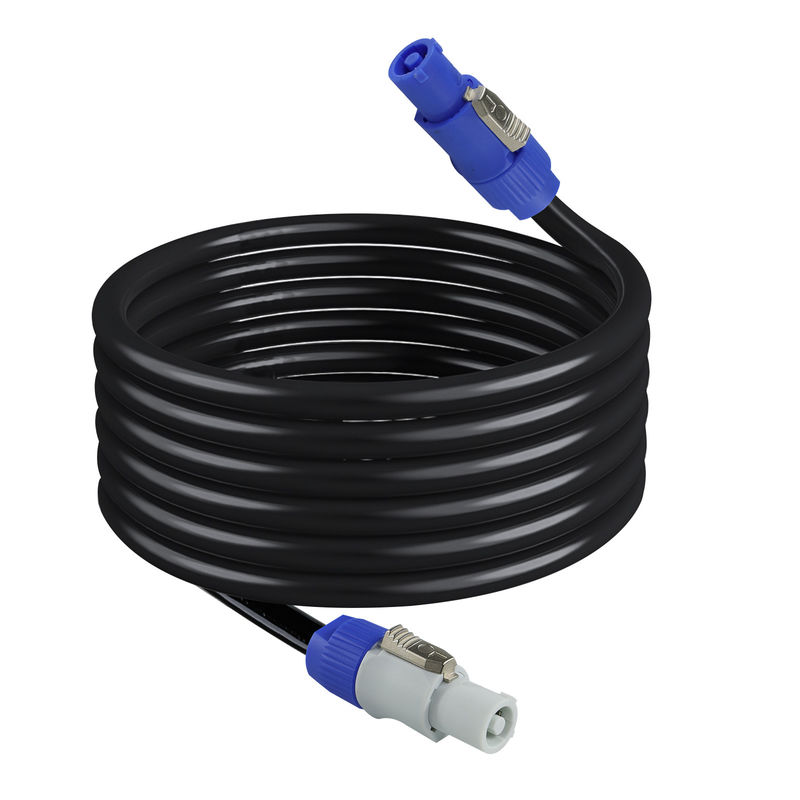

NAC3FCA to NAC3FCB 20A PowerCon Cable True1 Male to Female

NAC3FCA to NAC3FCB 20A PowerCon Cable True1 Male to Female
NAC3FCA to NAC3FCB 20A PowerCon Cable True1 Male to Female NAC3FCA to NAC3FCB 20A PowerCon Cable True1 Male to Female NAC3FCA to NAC3FCB 20A PowerCon Cable True1 Male to Female NAC3FCA to NAC3FCB 20A PowerCon Cable True1 Male to Female NAC3FCA to NAC3FCB 20A PowerCon Cable True1 Male to Female

Large Image :  NAC3FCA to NAC3FCB 20A PowerCon Cable True1 Male to Female

Product Details:
Place of Origin: Guangdong, China
Brand Name: KUNCAN
Certification: ul
Model Number: KC-NAC3FCA-NAC3FCB
Payment & Shipping Terms:
Minimum Order Quantity: 300 pieces
Price: $5.88/pieces 300-4999 pieces
Packaging Details: PE Bag/pcs
Delivery Time: 15days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 1000PCS/Per Week
Contact Now

NAC3FCA to NAC3FCB 20A PowerCon Cable True1 Male to Female

Description
Type: PowerCON Cable IP Level: IP54
AC Outlets Quantity: 1 Outlets Name: NAC3FCA To NAC3FCB
Cable: SJT SJTW SJOW 14AWG/3C Connector: True1
Rating Voltage: 125V Rating Current: 15A 20A
Conductor: Copper,CCA,CCS Jacket: PVC
Colour: Black
Highlight:

20A Electric Power Cord

,

IP56 Electric Power Cord

,

NAC3FCB Male Electric Power Cord

Heavy Duty NAC3FCA Male To NAC3FCB Male Electric Power Cord IP56 20A PowerCon Connector
Product Overview

NAC3FCA to NAC3FCB 20A AC PowerCon Cable True1 Top to True1 Inlet

NAC3FCA to NAC3FCB 20A PowerCon Cable True1 Male to Female 0 NAC3FCA to NAC3FCB 20A PowerCon Cable True1 Male to Female 1 NAC3FCA to NAC3FCB 20A PowerCon Cable True1 Male to Female 2
Key Features
  • 20A Continuous Current Rating (IEC 60309 compliant)
  • Neutrik True1 Series (NAC3FCA male to NAC3FCB female)
  • UL/CE/RoHS Certified for permanent installations
  • Heavy-Duty Construction: 12 AWG 3-conductor cable
  • 360° Strain Relief for touring applications
  • Incompatible with Classic PowerCon (blue/grey connectors)
Technical Specifications
Connectors
Type A NAC3FCA (True1 Top - Male)
Type B NAC3FCB (True1 Inlet - Female)
Contact Material Copper alloy with silver plating
Electrical Ratings
Current 20A continuous, 25A peak
Voltage 250V AC
Frequency 50/60Hz
Cable Construction
Conductor 12 AWG (3.31mm²) x 3
Insulation XLPE (105°C rated)
Jacket Black EPDM rubber
Recommended Applications
  • Professional Audio Systems: Power distribution for high-current amplifiers and DSP units

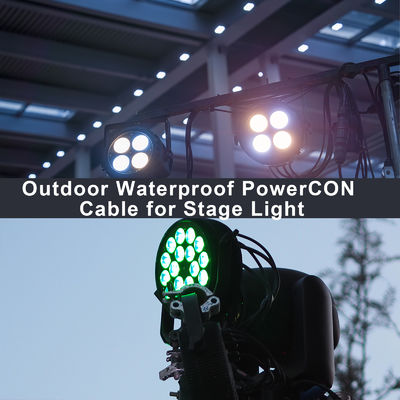

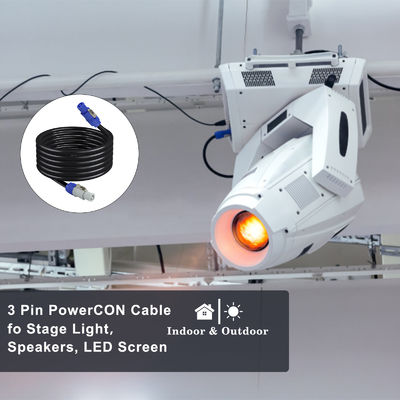

  • Touring Lighting Rigging: Interconnect for moving lights and LED walls requiring 20A service
  • Permanent Installations: Theaters, houses of worship, and broadcast facilities where UL listing is required
⚠️ Compatibility Notice: True1 connectors (black) are not mechanically compatible with classic PowerCon (blue/grey). Ensure all connected equipment uses True1 inlets.
Technical FAQs
Can this cable be used for power-through applications?

No. The NAC3FCB female connector is designed as an inlet only. For power-through applications, you would need a cable with two NAC3FCA male connectors.

Is this cable suitable for outdoor use?

Yes, when properly supported. The EPDM jacket provides UV resistance, but direct burial is not recommended unless specified with additional waterproofing.

Technical Resources
Related Products
True1 Adapters 20A Power Distribution Boxes CAM Lock to PowerCon Adapters
Professional Power Solutions. Neutrik PowerCon is a registered trademark of Neutrik AG.
