Ac 12 Volt Adaptor To Wall Plug 12V 2A Dc Adapter Replacement Power Supply Stripped End

Large Image : Ac 12 Volt Adaptor To Wall Plug 12V 2A Dc Adapter Replacement Power Supply Stripped End

Product Details:

Place of Origin:	China
Brand Name:	KUNCAN
Certification:	CE
Model Number:	KC-AD-EU-12V2A

Payment & Shipping Terms:

Minimum Order Quantity:	500PCS
Price:	USD1.32/PCS
Packaging Details:	PE Bag/pcs
Delivery Time:	25day
Payment Terms:	D/A,T/T,L/C
Supply Ability:	3000 Piece/Pieces per/Week

Contact Now

Ac 12 Volt Adaptor To Wall Plug 12V 2A Dc Adapter Replacement Power Supply Stripped End

Description

Connector Size:	5.5*2.1mm	Dc Wire:	2462 24AWG
Dc Line:	1.2/1.5m	Material:	ABS
Maximum Output Power:	24W	Certifications:	CE, FCC, RoHS
Current:	0.5a,1a,1.5a,2a,3a	Work Efficiency:	>90%
Highlight:	12V 2A Dc Adapter , 12V Dc Adapter Replacement , Stripped End Dc Adapter

12V DC Power Adapter Series

Regulated switching power supplies with overload protection and universal input voltage

6W (12V 0.5A)

12W (12V 1A)

18W (12V 1.5A)

24W (12V 2A)

30W (12V 2.5A)

36W (12V 3A)

0.5A Model Specifications

Parameter	Value	Testing Standard
Input Voltage Range	100-240V AC	IEC 61000-3-2
Output Voltage Accuracy	±5% (12V DC)	EN 60335-1
Ripple & Noise	<120mV p-p	IEC 61000-4-17
Efficiency	≥85% (typical)	Energy Star V2.0

Safety Certifications

UL 62368-1 CE EN 55032 FCC Part 15B RoHS 3 Compliant PSE Japan

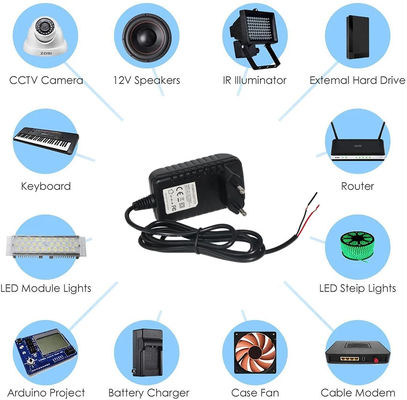

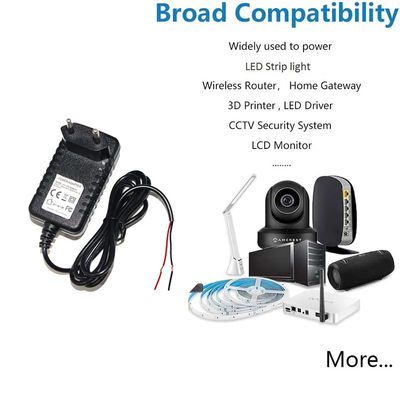

Common Compatible Devices

12V 0.5A-1A:

WiFi routers (TP-Link/Netgear)
Bluetooth speakers
Digital photo frames

12V 1.5A-2A:

CCTV cameras
LED strip lights
POS terminals

12V 2.5A-3A:

3D printer components
Industrial controllers
Automotive test equipment

FAQs & Troubleshooting

Can I use a 12V 3A adapter for a 12V 1A device?

Yes (voltage must match exactly, current rating indicates maximum capacity). Higher amperage adapters are safe but don't exceed voltage.

Why does my adapter get warm during use?

Normal operation may cause temperatures up to 60°C. Discontinue use if: 1) Case deformation occurs 2) You smell burning 3) Temperature exceeds 70°C.

Product Specification:

Output	Output voltage	12v
	Output current	1A 2A
	Output power	24W
Input plug types	EU Plug
Out plug types	DC jack, XLR, JST, Cigar Lighter, Alligator Clips,Viation Plug, Din Plug.etc
DC jack size	5.52.1mm, 5.52.5mm, 3.51.35mm, 3.51.0mm, 4.01.7mm, 2.50.7mm .etc

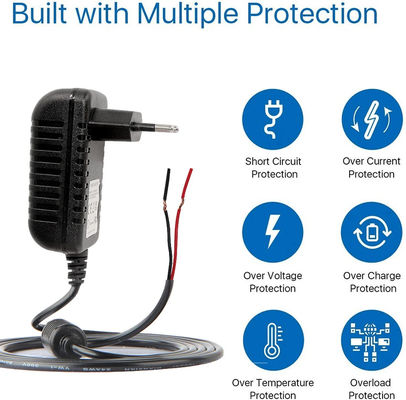

Safety protection	Over voltage protection	120% min
	Over current protection	120% min
	Short circuit protection	auto recovery
	Over hot protection	auto recovery
Electronic characteristics	Operating Temperature	-40~50°C
	Storage Temperature	-40 to +85 °C
	Humidity	10%~95%RH
	Efficiency	80%
	Ripple And Noise	Output voltage 1%, Ripple&Noise≤120mv
	Turn-on Delay Time	3 second max
	Overshoot at Turn-on	10% max when turn on or off
	AC leakage Current	0.25mA max at AC 240V voltage
	Load Regulation	±5%
	Line Regulation	±5%
	High-Voltage test	Primary to secondary: 3 kV / 5mA 60S
	Drop Test	0.75m drop test, 6 times
	Burn-In Test	100% load, 5hours
Application	CD/DVD,MP3/MP4,Digital camera,Comunication Terminals Etc
Safe Certificate	CE ROHS FCC CB BS SAA C-tick PSE KC
