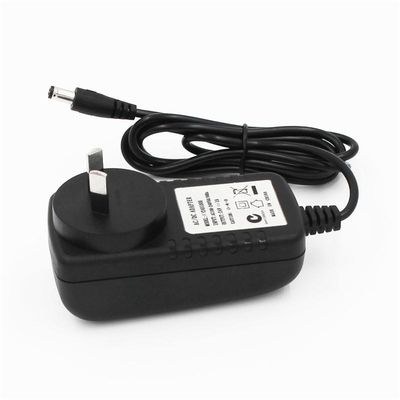

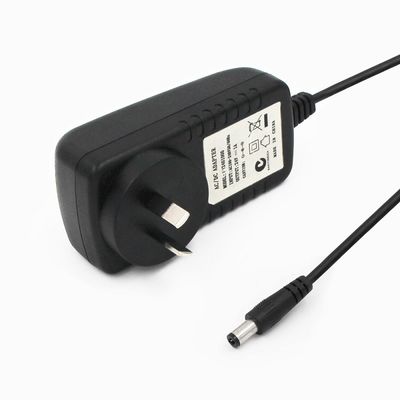

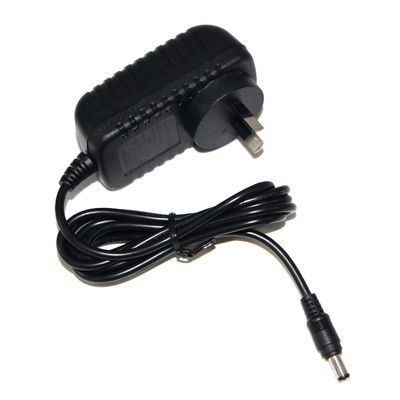

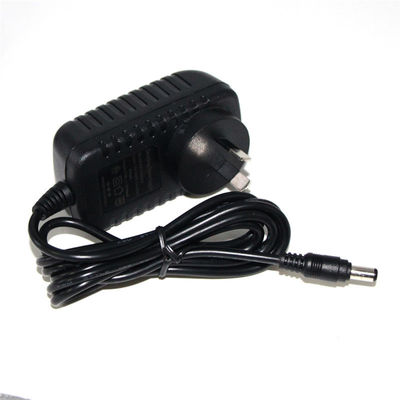

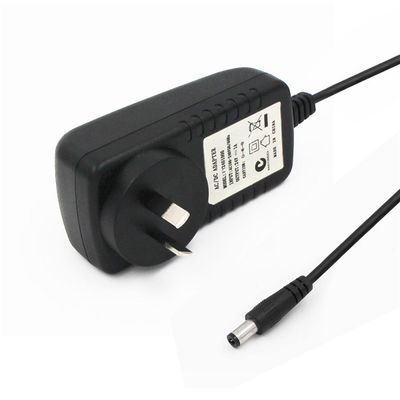

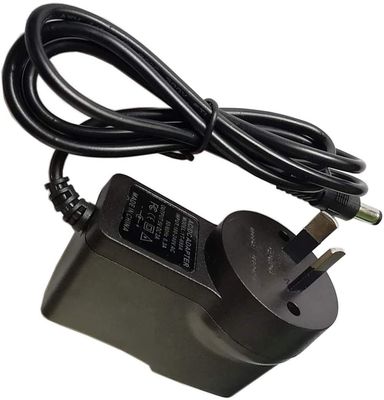

Product Details:
|
Output Type: | DC | Connection: | Wall Type |
---|---|---|---|
Type: | Wall-mount / Desktop/metal Case | Input Voltage: | Plug In Dc Adapter |
Output Type: | 5V 1A 1.5A | Output Plug: | DC5.5*2.1mm, 5.5*2.5mm, 3.5*1.35mm Etc |
Application: | Switching For Desktop, Computer | Short Circuit Protect: | Auto Recovery |
OEM: | YES | Samples: | 1~3 Pcs |
MOQ: | 500pcs | Skype: | Aron Pang |
Highlight: | 1A 5V Power Supply Adapter,1.5A 5V Power Supply Adapter,5V Power Supply Adapter |
Reliable power solutions for electronics, routers, and small appliances. Compact 12V adapter for small electronics and devices. Output: 12V 2A | Connector: DC 5.5*2.1mm | Input: 100-240V | SAA Approved Dual output adapter for powering two devices simultaneously. Output: 12V 3A | Connector: Dual DC 5.5*2.1mm | Input: 100-240V | SAA Approved High-current adapter for routers, monitors, and small appliances. Output: 12V 5A | Connector: DC 5.5*2.1mm | Input: 100-240V | SAA Approved Thick-gauge wiring for high-power devices and tools. Output: 12V 10A | Connector: DC 5.5*2.1mm | Input: 100-240V | SAA Approved Compatible with 12V devices like routers, monitors, and small appliances. Yes! The dual DC jack adapter allows you to power two devices simultaneously. Yes! Our heavy-duty adapters support up to 10A for high-power applications.SAA Approved 12V Power Adapters & Dual DC Jack Adapters
SAA Power Adapter 12V (2A)
Dual DC Jack AU Adapter (3A)
DC5.5*2.1mm AC to DC Adapter (5A)
Heavy-Duty SAA Adapter 12V (10A)
Why Choose Our SAA Adapters?
Frequently Asked Questions
What devices can I power with these adapters?
Can I use the dual DC jack adapter for two devices?
Is the adapter suitable for high-power devices?
What is the Specifications of our power supply cable?
Input | Input voltage | AC 100~240V |
Variation Frequency | 47~63Hz | |
Input frequence | 50~60Hz | |
Output | Output voltage | 5V |
Output current | 1A 1.5A | |
Output power | 5W or 7.5W | |
Input plug types | US plug ( other EU/UK/SAA) |
|
Out plug types | DC jack, XLR, JST, Cigar Lighter, Alligator Clips,Viation Plug, Din Plug.etc | |
DC jack size | 5.5*2.1mm, 5.5*2.5mm, 3.5*1.35mm, 3.5*1.0mm, 4.0*1.7mm, 2.5*0.7mm .etc | |
Safety protection | Over voltage protection | 120% min |
Over current protection | 120% min | |
Short circuit protection | auto recovery | |
Over hot protection | auto recovery | |
Electronic characteristics | Operating Temperature | -40~50°C |
Storage Temperature | -40 to +85 °C | |
Humidity | 10%~95%RH | |
Efficiency | 80% | |
Ripple And Noise | Output voltage 1%, Ripple&Noise≤120mv | |
Turn-on Delay Time | 3 second max | |
Overshoot at Turn-on | 10% max when turn on or off | |
AC leakage Current | 0.25mA max at AC 240V voltage | |
Load Regulation | ±5% | |
Line Regulation | ±5% | |
High-Voltage test | Primary to secondary: 3 kV / 5mA 60S | |
Drop Test | 0.75m drop test, 6 times | |
Burn-In Test | 100% load, 5hours | |
Application | CD/DVD,MP3/MP4,Digital camera,Comunication Terminals Etc | |
Safe Certificate | CE ROHS CB BS SAA C-tick PSE KC |
Transaction Terms:
Main exporting area | European, North American,Turkey,South Koea, North Asia |
Price terms | EXW, FOB Shenzhen/Hongkong, CIF destination port |
Payment terms | T/T 30% deposit, the balance before shipment; Western Union, L/C |
Delivery time | Usually is about 15 days, always depend on your order quantity |
Shipping way | By air, By train, By sea or combined shipment |
Express way | FedEx,DHL,TNT,UPS,EMS,SF etc |
Samples | 1~3 pcs free samples avaiable, delivery time about 3 days after details confirmed |
Guarantee period | 1 year |
Packing information for power cord
Package Way | one piece per polybag then into a Carton |
Carton Size | 40*40*27 cm, 15.5*15.5*10.5 inch |
Qty/CTN | 100-150pcs ( The length between 1.5-1.8m) |
Net Weight | 17.6-18.5KG |
Gross Weight | 18.5-19.4KG |
Carton Materials |
RoHS approval |
Q1: Are you factory or trade company?
A: We are factory of more than 16 years export experience.
Q2: What is your terms of payment?
A: T/T (bank transfer),Western Union, Paypal,etc.
Q3: What is your terms of delivery?
A: DHL, EMS,FedEx,Ocean shipment,ect.
Q4: Samples ?
A : 2-5 pieces free samples are available,fright on you. delivery time usually is 2-3 days. Customized samples will take 5-10days.
Q5:What is the MOQ?
A: 500 pcs .
Q6:What is delivery time if we place an order ?
A:We always delivery the goods within 15-20 working days after received your payment.
