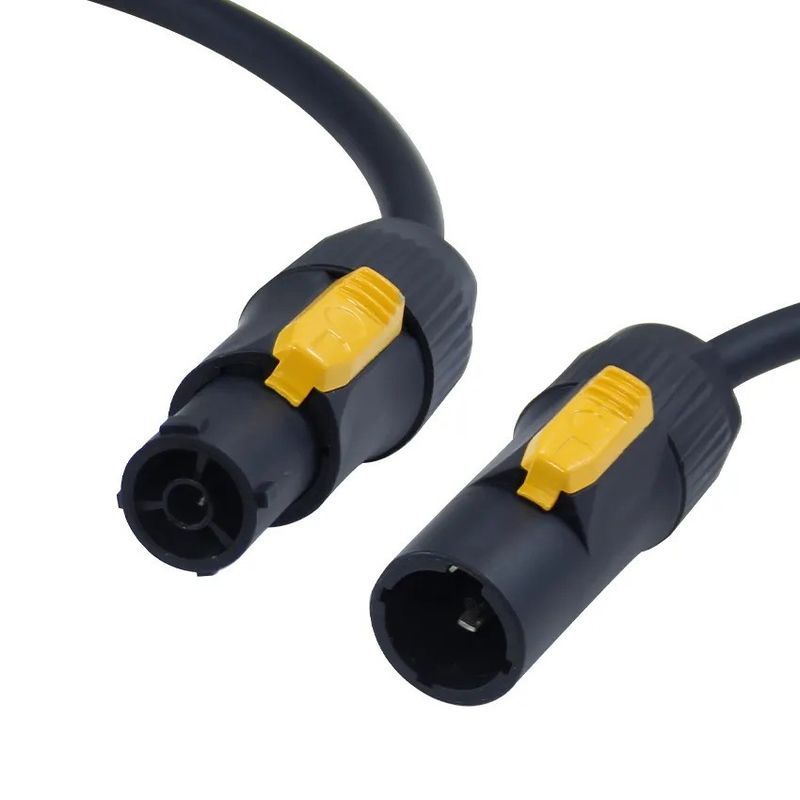

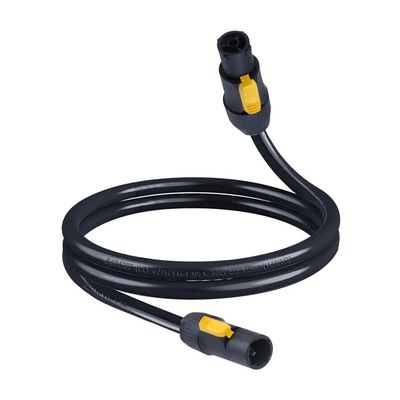

20A PowerCon True1 Male to Female AC Power Cable 12AWG

20A PowerCon True1 Male to Female AC Power Cable 12AWG
20A PowerCon True1 Male to Female AC Power Cable 12AWG
20A PowerCon True1 Male to Female AC Power Cable 12AWG 20A PowerCon True1 Male to Female AC Power Cable 12AWG 20A PowerCon True1 Male to Female AC Power Cable 12AWG 20A PowerCon True1 Male to Female AC Power Cable 12AWG 20A PowerCon True1 Male to Female AC Power Cable 12AWG 20A PowerCon True1 Male to Female AC Power Cable 12AWG 20A PowerCon True1 Male to Female AC Power Cable 12AWG

Large Image :  20A PowerCon True1 Male to Female AC Power Cable 12AWG

Product Details:
Place of Origin: Guangdong, China
Brand Name: KUNCAN
Model Number: KC-US-C13
Payment & Shipping Terms:
Minimum Order Quantity: 300 pieces
Price: $1.25/pieces 300-4999 pieces
Packaging Details: PE Bag/pcs
Delivery Time: 15days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 1000PCS/Per Week
Contact Now

20A PowerCon True1 Male to Female AC Power Cable 12AWG

Description
Type: AC Power Cord Application: Home Appliance
Male End Type: NEMA Female End Type: IEC
Plug Standard: Other IP Level: IP11
AC Outlets Quantity: 1 Outlets Cable Length: 0.5m
Name: Treu1 Male To Female Connector Cable: SVT 18AWG/ SJT 14AWG/3C
Connector: True1 Rating Voltage: 125V
Rating Current: 10A/15A Conductor: Copper,CCA,CCS
Jacket: PVC Colour: Black
Length: 1m-10m
Highlight:

Safe PowerCon Cable Splitter

,

10m PowerCon Cable Splitter

,

1m PowerCon Cable Splitter

Lockable PowerCon True1 Male To Female 20A Cable

Safe and secure power cable solution for stage lighting and professional audio applications.

Product Attributes
Type:
AC Power Cord
Application:
Home Appliance
Male End Type:
NEMA
Female End Type:
IEC
Plug Standard:
Other
IP Level:
IP11
Cable Length:
0.5m
Cable Type:
SVT 18AWG/ SJT 14AWG/3C
Connector:
True1
Rating Voltage:
125V
Rating Current:
10A/15A
Conductor:
Copper,CCA,CCS
Jacket:
PVC
Color:
Black
Key Features
  • 20A Continuous Current Rating (IEC 60309 compliant)
  • Neutrik True1 Series (NAC3FCA male to NAC3FCB female)
  • UL/CE/RoHS Certified for permanent installations
  • Heavy-Duty Construction: 12 AWG 3-conductor cable
  • 360° Strain Relief for touring applications
  • Incompatible with Classic PowerCon (blue/grey connectors)
20A PowerCon True1 Male to Female AC Power Cable 12AWG 0
Technical Specifications
Connectors
Type A NAC3FCA (True1 Top - Male)
Type B NAC3FCB (True1 Inlet - Female)
Contact Material Copper alloy with silver plating
Electrical Ratings
Current 20A continuous, 25A peak
Voltage 250V AC
Frequency 50/60Hz
Cable Construction
Conductor 12 AWG (3.31mm²) x 3
Insulation XLPE (105°C rated)
Jacket Black EPDM rubber

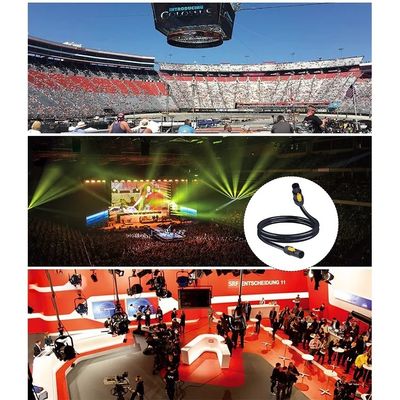

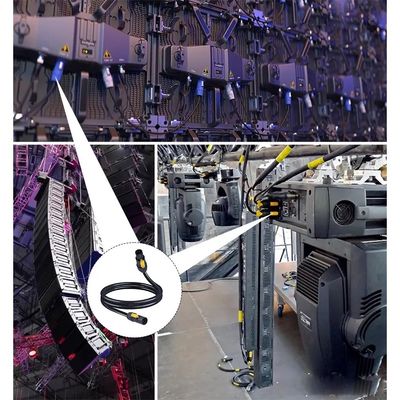

Recommended Applications
  • Professional Audio Systems: Power distribution for high-current amplifiers (L-Acoustics, Powersoft) and DSP units
  • Touring Lighting Rigging: Interconnect for moving lights and LED walls requiring 20A service
  • Permanent Installations: Theaters, houses of worship, and broadcast facilities where UL listing is required
⚠️ Compatibility Notice: True1 connectors (black) are not mechanically compatible with classic PowerCon (blue/grey). Ensure all connected equipment uses True1 inlets.
Technical FAQs
Can this cable be used for power-through applications?

No. The NAC3FCB female connector is designed as an inlet only. For power-through applications, you would need a cable with two NAC3FCA male connectors.

Is this cable suitable for outdoor use?

Yes, when properly supported. The EPDM jacket provides UV resistance, but direct burial is not recommended unless specified with additional waterproofing.

Technical Resources
True1 Technical Documentation 20A Power Distribution Guide UL Standards for Touring Gear
Related Products
True1 Adapters 20A Power Distribution Boxes CAM Lock to PowerCon Adapters
20A PowerCon True1 Male to Female AC Power Cable 12AWG 1 20A PowerCon True1 Male to Female AC Power Cable 12AWG 2 20A PowerCon True1 Male to Female AC Power Cable 12AWG 3 20A PowerCon True1 Male to Female AC Power Cable 12AWG 4 20A PowerCon True1 Male to Female AC Power Cable 12AWG 5
Product Variations
Cord Type Gauge / # Conductors
SVT SJT 3C/18AWG; 3C/16AWG/14AWG
SJTW 3C/18AWG;3C/16AWG/14AWG
SPT-1;SPT-2;NISPT-2 18AWG/2C
Frequently Asked Questions
Are you factory or trade company?

We are factory of more than 16 years export experience.

What is your terms of payment?

T/T (bank transfer), Western Union, Paypal, etc.

What is your terms of delivery?

DHL, EMS, FedEx, Ocean shipment, etc.

Samples available?

2-5 pieces free samples are available, freight on you. Delivery time usually is 2-3 days. Customized samples will take 5-10 days.

What is the MOQ?

500 pcs.

What is delivery time if we place an order?

We always delivery the goods within 15-20 working days after received your payment.

20A PowerCon True1 Male to Female AC Power Cable 12AWG 6 20A PowerCon True1 Male to Female AC Power Cable 12AWG 7 20A PowerCon True1 Male to Female AC Power Cable 12AWG 8 20A PowerCon True1 Male to Female AC Power Cable 12AWG 9
