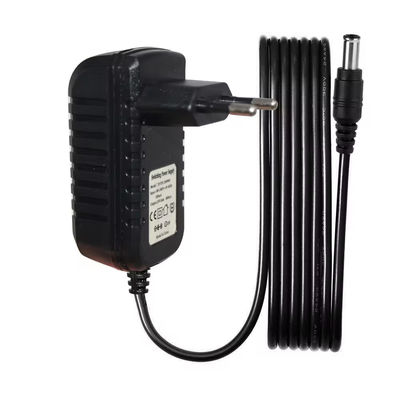

Black Dc 12V 0.5A 1A 1.5A 2A 2.5A 3A Power Supply Adapter For Cctv Ip Camera Charging Ac To Dc Adapter Dc 5.5Mm Jack

Name: Black Dc 12V 0.5A 1A 1.5A 2A 2.5A 3A Power Supply Adapter For Cctv Ip Camera Charging Ac To Dc Adapter Dc 5.5Mm Jack
Brand: Shenzhen Kuncan Electronics Co., Ltd.
SKU: KC-AD-EU-12V2A
Price: 1.58 USD
Availability: InStock

All Products

Electric Power Cord
(258)

Power Supply Adapter
(67)

GaN PD Charger
(17)

Network Cable
(20)

Solar Power Cable
(34)

Telephone Line Cable
(14)

Fiber Optic Cable
(24)

Step Up/Down Cable
(39)

DC Extension Cable
(15)

USB Data Cable
(29)

POE Injector Splitter
(26)

HDMI Cable
(16)

Best Products

DC 12V 2A Power Supply Adapter For Cctv Ip Camera Charging Ac Adapter 12V Dc 5.5Mm Jack

DC48V 3500mA 5.5*2.1mm Desktop Power Supply Adapter With Angle DC Plug

Black 19v Desktop Power Supply Adapter Adjustable Ac/Dc 2a FCC certified

Certification

Customer Reviews

Product is as described and works as expected

—— Eric Jespersen

The perfect cord that we needed to plug our portable light into the plug on the outside of our camper. Love that its extra long too!

—— Adarondax

The Y Splitter Power Cord is great for efficient power distribution. this splitter cord provides a reliable and versatile solution for extension and other power needs. With 250V/10A capacity, it's a great choice for power connections in various setups. I would recommend it

—— Eddie Rattlehead

It was exactly what I needed

—— lisamarie

Great product would recommend this product to others

—— MIOS LOFT Tonopah,AZ

I used for 5 amps @ 12 volts, which should be easy for this cable to deliver and it did just that.

—— FRANK

Product does what there intended to to do. Good value for the money.

—— Bigal

Buen producto y entrega oportuna.

—— Elkin Mario Anchicoque Calder

I'm Online Chat Now

Black Dc 12V 0.5A 1A 1.5A 2A 2.5A 3A Power Supply Adapter For Cctv Ip Camera Charging Ac To Dc Adapter Dc 5.5Mm Jack

Large Image : Black Dc 12V 0.5A 1A 1.5A 2A 2.5A 3A Power Supply Adapter For Cctv Ip Camera Charging Ac To Dc Adapter Dc 5.5Mm Jack

Product Details:

Place of Origin:	China
Brand Name:	KUNCAN
Certification:	CE
Model Number:	KC-AD-EU-12V2A

Payment & Shipping Terms:

Minimum Order Quantity:	500
Price:	USD1.58/PCS
Packaging Details:	White Carton
Delivery Time:	15days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	1000PCS/Per Week

Contact Now

Black Dc 12V 0.5A 1A 1.5A 2A 2.5A 3A Power Supply Adapter For Cctv Ip Camera Charging Ac To Dc Adapter Dc 5.5Mm Jack

Description

Type:	AC DC Adapter	Output:	12V,2A
Plug Type:	EU	Power Cord Length:	1.8m
Certifications:	CE, FCC, RoHS	Color:	Black/White
Cable:	2464/2468 20-28AWG	DC Sizes:	5.52.1mm, 5.52.5mm, 4.01.7mm, 3.51.35mm
Input:	100-240Vac 50/60Hz	Over Voltage Protection:	120% Min
Highlight:	3A Power Supply Adapter , 2A Power Supply Adapter , 12V Power Supply Adapter

kc cabel Alibaba International Station Products:

http://www.sdcable.co/productgrouplist-209989797/Power_supply.html

12V DC Power Adapter Series

Regulated switching power supplies with overload protection and universal input voltage

6W (12V 0.5A)

12W (12V 1A)

18W (12V 1.5A)

24W (12V 2A)

30W (12V 2.5A)

36W (12V 3A)

0.5A Model Specifications

Parameter	Value	Testing Standard
Input Voltage Range	100-240V AC	IEC 61000-3-2
Output Voltage Accuracy	±5% (12V DC)	EN 60335-1
Ripple & Noise	<120mV p-p	IEC 61000-4-17
Efficiency	≥85% (typical)	Energy Star V2.0

Safety Certifications

UL 62368-1 CE EN 55032 FCC Part 15B RoHS 3 Compliant PSE Japan

Common Compatible Devices

12V 0.5A-1A:

WiFi routers (TP-Link/Netgear)
Bluetooth speakers
Digital photo frames

12V 1.5A-2A:

CCTV cameras
LED strip lights
POS terminals

12V 2.5A-3A:

3D printer components
Industrial controllers
Automotive test equipment

FAQs & Troubleshooting

Can I use a 12V 3A adapter for a 12V 1A device?

Yes (voltage must match exactly, current rating indicates maximum capacity). Higher amperage adapters are safe but don't exceed voltage.

Why does my adapter get warm during use?

Normal operation may cause temperatures up to 60°C. Discontinue use if: 1) Case deformation occurs 2) You smell burning 3) Temperature exceeds 70°C.

Dc 12V 2A Power Supply For Cctv Ip Camera Charging Ac Adapter Dc 5.5Mm Jack

Product Description:

Input	Input voltage	AC 100~240V
	Variation Frequency	50-60Hz
	Input frequence	50~60Hz
Output	Output voltage	12v
	Output current	2A
	Output power	24W

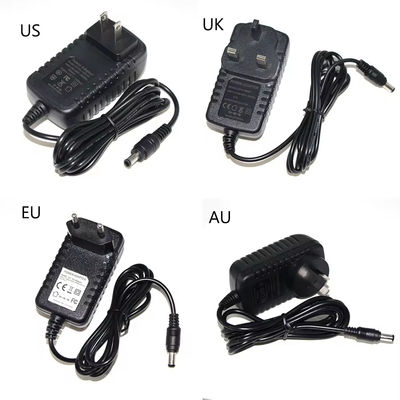

Input plug types	EU/ US /UK /AUS /South Korea /South African Plugs
Out plug types	DC jack, XLR, JST, Cigar Lighter, Alligator Clips,Viation Plug, Din Plug.etc
DC jack size	5.52.1mm, 5.52.5mm, 3.51.35mm, 3.51.0mm, 4.01.7mm, 2.50.7mm .etc
Safety protection	Over voltage protection	120% min
	Over current protection	120% min
	Short circuit protection	auto recovery
	Over hot protection	auto recovery
Electronic characteristics	Operating Temperature	-40~50°C
	Storage Temperature	-40 to +85 °C
	Humidity	10%~95%RH
	Efficiency	80%
	Ripple And Noise	Output voltage 1%, Ripple&Noise≤120mv
	Turn-on Delay Time	3 second max
	Overshoot at Turn-on	10% max when turn on or off
	AC leakage Current	0.25mA max at AC 240V voltage
	Load Regulation	±5%
	Line Regulation	±5%
	High-Voltage test	Primary to secondary: 3 kV / 5mA 60S
	Drop Test	0.75m drop test, 6 times
	Burn-In Test	100% load, 5hours
Application	CD/DVD,MP3/MP4,Digital camera,Comunication Terminals Etc
Safe Certificate	CE ROHS FCC CB BS SAA C-tick PSE KC

Black Dc 12V 0.5A 1A 1.5A 2A 2.5A 3A Power Supply Adapter For Cctv Ip Camera Charging Ac To Dc Adapter Dc 5.5Mm Jack 0

Black Dc 12V 0.5A 1A 1.5A 2A 2.5A 3A Power Supply Adapter For Cctv Ip Camera Charging Ac To Dc Adapter Dc 5.5Mm Jack 1

Black Dc 12V 0.5A 1A 1.5A 2A 2.5A 3A Power Supply Adapter For Cctv Ip Camera Charging Ac To Dc Adapter Dc 5.5Mm Jack 2

Black Dc 12V 0.5A 1A 1.5A 2A 2.5A 3A Power Supply Adapter For Cctv Ip Camera Charging Ac To Dc Adapter Dc 5.5Mm Jack 3

FAQ:

Q1: Are you factory or trade company?

A: We are factory of more than 10 years export experience.

Q2: What is your terms of payment?
A: T/T (bank transfer),Western Union, Paypal,etc.

Q3: What is your terms of delivery?
A: DHL, EMS,FedEx,Ocean shipment,ect.

Q4: Samples ?

A : 2-5 pieces free samples are available,fright on you. delivery time usually is 2-3 days. Customized samples will take 5-10days.

Q5:What is the MOQ?

A: 500 pcs .

Q6:What is delivery time if we place an order ?
A:We always delivery the goods within 15-20 working days after received your payment.
