ADSL Splitter RJ11 RJ45 Dual Port for Telephone Broadband

ADSL Splitter RJ11 RJ45 Dual Port for Telephone Broadband
ADSL Splitter RJ11 RJ45 Dual Port for Telephone Broadband
ADSL Splitter RJ11 RJ45 Dual Port for Telephone Broadband ADSL Splitter RJ11 RJ45 Dual Port for Telephone Broadband ADSL Splitter RJ11 RJ45 Dual Port for Telephone Broadband ADSL Splitter RJ11 RJ45 Dual Port for Telephone Broadband ADSL Splitter RJ11 RJ45 Dual Port for Telephone Broadband ADSL Splitter RJ11 RJ45 Dual Port for Telephone Broadband ADSL Splitter RJ11 RJ45 Dual Port for Telephone Broadband

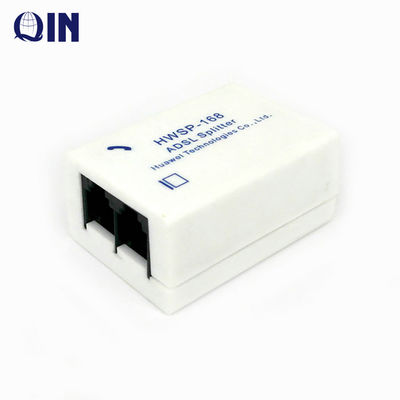

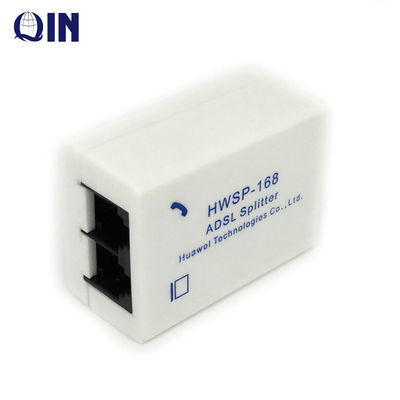

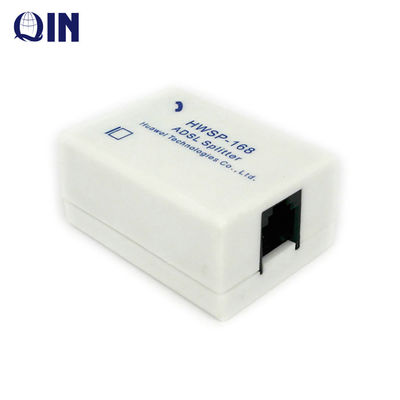

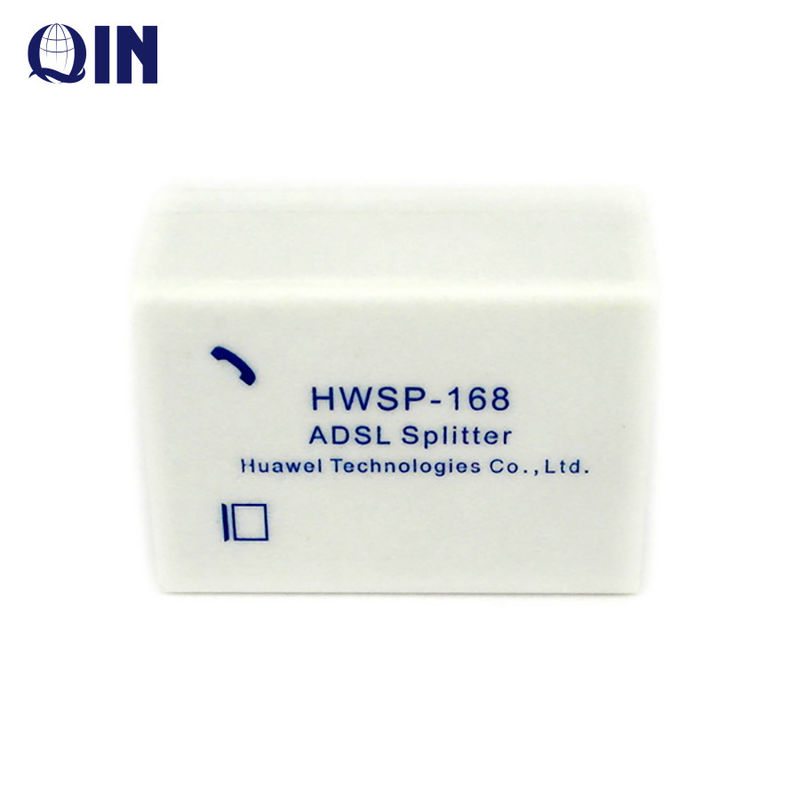

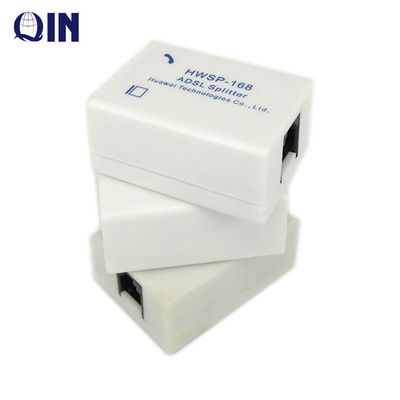

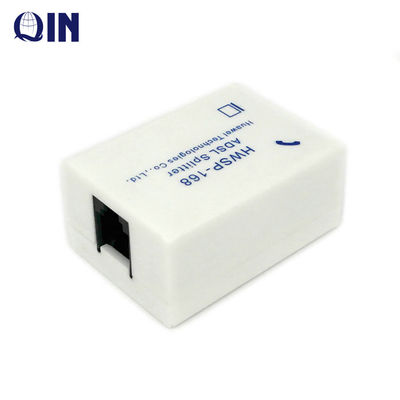

Large Image :  ADSL Splitter RJ11 RJ45 Dual Port for Telephone Broadband

Product Details:
Place of Origin: Guangdong, China
Brand Name: kuncan
Model Number: HWSP 168
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pieces
Price: $0.40 - $0.41/pieces
Packaging Details: 1pc /opp bag, 100pcs / CTN <br> Or according to the customers' Requirement. <br>G.W: 10 KGS
Payment Terms: L/C,D/A,D/P,T/T
Supply Ability: 500000 Piece/Pieces per Month
Contact Now

ADSL Splitter RJ11 RJ45 Dual Port for Telephone Broadband

Description
Type: ADSL Splitter Color: White
Material: ABS Plastic Band Width: 4.4MHz
Power Voltage: 12V Gold Plate Jack: PU
Power Frequency: 60KHz Average Power: 60 Watts
Transmition Distance: 100M
Highlight:

Stable ADSL Splitter HWSP 168

,

ABS Plastic ADSL Splitter HWSP 168

ADSL Splitter RJ11 RJ45 Dual Port for Telephone Line Broadband
Attribute Value
Type ADSL Splitter
Color White
Material ABS Plastic
Band width 4.4MHz
Power Voltage 12V
Gold Plate Jack PU
Power Frequency 60KHz
Average Power 60 Watts
Transmition Distance 100M
Product Description
ISP-Grade Solutions for Telephone Line Broadband Connections. ADSL2+ Certified IEEE 518 Noise Standard with Gold Plated Contacts and IDC/Punchdown Terminations.
Core Specifications
  • Connector Type: Female RJ11 (6P2C) ×2, RJ45 (8P8C) ×1
  • Frequency Separation: 4kHz cut-off (±0.5kHz tolerance)
  • POTS Insertion Loss: ≤ 0.3dB @ 1kHz
  • ADSL Bandwidth: Up to 2.2MHz (ADSL2+ compatible)
  • Contact Resistance: ≤ 25mΩ (initial)
  • Surge Protection: 1kV/1kA (8/20μs waveform)
Compatible Standards
  • ITU-T G.992.5 (ADSL2+)
  • ANSI T1.413 Issue 2
  • ETSI TS 101 952-1
  • IEEE 518 (Noise Control)
  • BS 6312 (UK Telephone Sockets)
  • FCC Part 68 (US Telecom)
Standard Installation Wiring
WALL JACK ────[FILTER]───-> PHONE │ └──────-> MODEM
Color Code:
- Line 1: Red (Ring), Green (Tip)
- Line 2: Black (Ring), Yellow (Tip)
Note: Always disconnect DSL modem before wiring
Troubleshooting Common Issues
Symptom Likely Cause Solution
ADSL sync drops when phone rings Missing/inadequate splitter Install filter on all phone devices
"Noise" on telephone line High-frequency signal leakage Verify splitter Hi/Lo-pass filters
Slow broadband speeds RJ11 connector oxidation Clean contacts with isopropyl alcohol
No dial tone with filter Reverse polarity wiring Swap tip/ring connections
Regional Compatibility
North America
- AT&T U-verse filters
- CenturyLink DSL modems
- Comcast Xfinity Voice

Europe/UK
- BT Openreach faceplates
- Deutsche Telekom TAE ports
- Orange France splitters

Asia-Pacific
- NTT Docomo Japan
- Singtel ADSL2+
- Telstra Australia
  • Separates voice signal and ADSL digital signal from telephone signal.
  • Protects the voice signal and ADSL digital signal from interference of a telephone or a fax machine.
  • Three RJ11 at each side for telephone line, phone and modem.
Technical Specifications
Operating Temperature 5-40°C
Relative Humidity 20-90%RH
Reference impedance load 600Ω
DC Resistance < 50Ω
Impedance @ 25 Hz and 50 Hz ≈ 40
Insulation resistance DC/250V (A-wire and B-wire) >25 MΩ to earth >100 MΩ
Insertion Loss @ 1K HZ < 1 dB
ADSL Splitter RJ11 RJ45 Dual Port for Telephone Broadband 0
ADSL Splitter RJ11 RJ45 Dual Port for Telephone Broadband 1
ADSL Splitter RJ11 RJ45 Dual Port for Telephone Broadband 2
Name ADSL MODEM SPLITTER
Model Number HSWP-168
Type 6Pins
Product Name Cable Adapter
Gender Female
Port 2 ports output
Application Telephone/Computer
Category RJ45/RJ11
Material ABS
