Technical Specifications

 Product Introduction

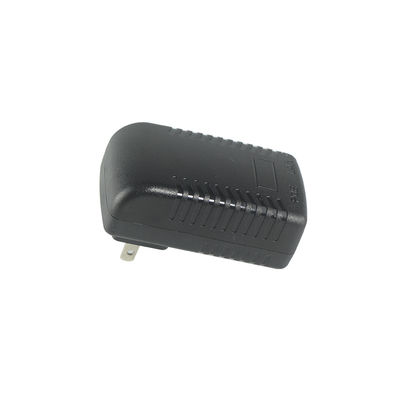

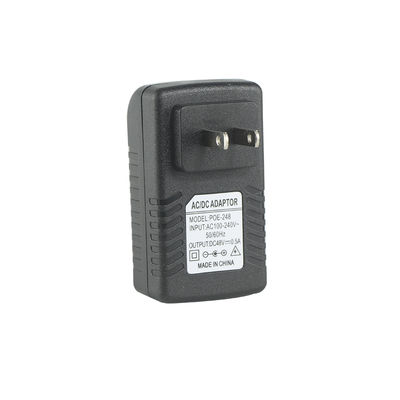

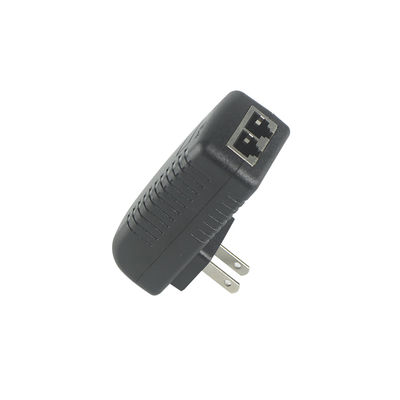

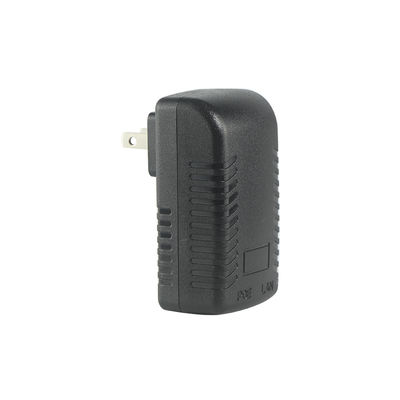

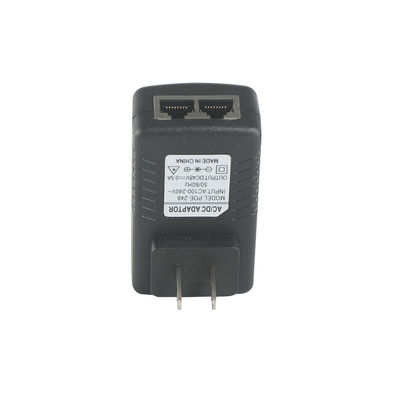

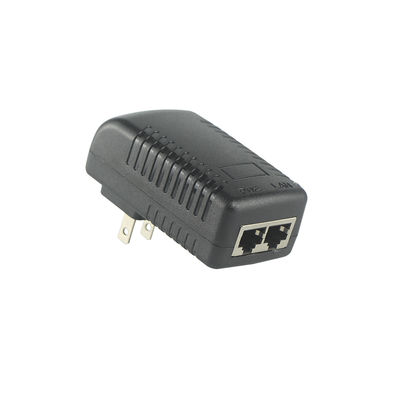

The US Plug Active PoE Injector provides data and power to PoE-enabled devices via a single Ethernet cable. Designed for North American regions, this adapter is fully compatible with IEEE 802.3af and 802.3at standards, supplying stable 48V DC output up to 30W.

It’s a space-saving and cost-effective alternative to expensive PoE switches, ideal for IP surveillance, VoIP phones, and Wi-Fi AP installations.

 Key Specs at a Glance

• Plug Type: US 2-Pin Flat (Type A)

• PoE Output: 48V DC / 15.4W or 30W

• Ethernet Speed: 10/100Mbps or 10/100/1000Mbps

• Ports: RJ45 Data In, RJ45 PoE Out

• Standards: IEEE 802.3af / 802.3at

 Product Features

•  Built-in US plug – compact and easy to use

•  Plug-and-play – no setup required

•  Supports IEEE 802.3af/at standards

•  Built-in surge and overload protection

•  Stable 48V PoE power for remote installations

 Compatible Devices

•  IP Security Cameras

•  Wireless Access Points

•  VoIP Desk Phones

•  Embedded PoE Devices

•  Industrial Network Equipment

 Only for IEEE 802.3af/at compliant devices
 Not suitable for passive PoE devices

 Safety & Usage Notes

• Use only with PoE-ready equipment

• Keep unit dry and ventilated during operation

• Use Cat5e or higher-grade Ethernet cable

• Avoid daisy-chaining with other power adapters

OEM & Customization Options
