USB-C to RJ45 Power Injector Cable -5V to 12V Step-Up Ethernet Adapter for IP Camera, Access Point, IoT Device

USB-C to RJ45 Power Injector Cable – 5V to 12V Step-Up Ethernet Adapter for IP Camera, Access Point, IoT Device

Product Introduction

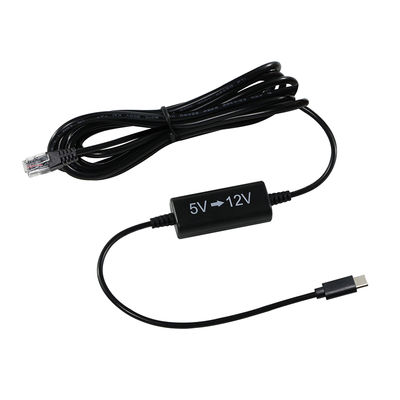

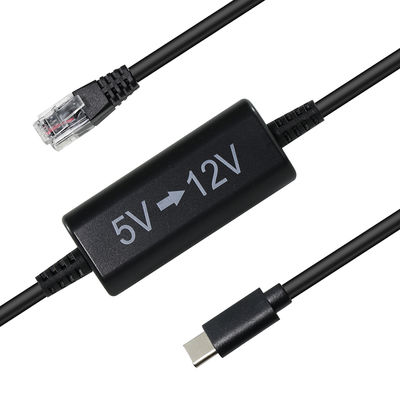

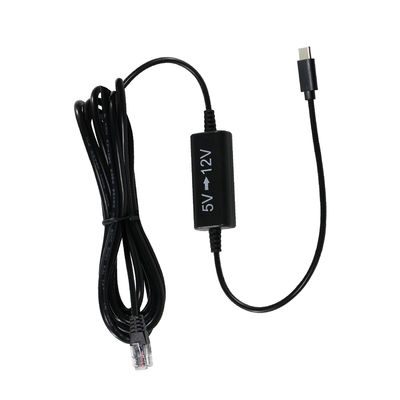

This USB-C to RJ45 Ethernet Power Injector Cable allows you to boost a 5V USB-C power source to 12V, injecting power through an RJ45 Ethernet connector for devices like IP cameras, routers, access points, or other passive PoE equipment.

It’s an ideal solution for mobile, solar-powered, or DIY power-over-Ethernet applications where traditional 48V PoE is unavailable.

 Key Specs at a Glance

• Input: USB-C 5V

• Output: 12V via RJ45 (non-standard PoE)

• Max Output: 7.2W (12V 0.6A)

• Smart Boost Chip: DC-DC step-up

• Length: 20–50cm standard

• Use: Power-only injection, no data passthrough

 Product Features

•  Converts USB-C 5V to 12V output for passive PoE devices

•  Simple plug-and-play, no software required

• Ideal for low-power IP Cameras and IoT terminals

•  Compact and portable for travel or field use

•  Overcurrent and short-circuit protected

 Compatible Devices

•  12V IP Cameras (non-PoE type with passive injector support)

•  Wireless Access Points

•  MikroTik, TP-Link, Ubiquiti (with passive 12V input)

•  Raspberry Pi + PoE HAT (5–12V support)

•  IoT Sensors / Smart Modules requiring 12V via RJ45

Note: This cable provides power only. It does not support Ethernet data transmission.

 Safety & Usage Notes

• Only for 12V-compatible passive PoE devices

• Ensure USB-C power source can supply at least 2A at 5V

• Do not connect to standard PoE switches or 48V systems

• Avoid exposure to water or excessive heat

 OEM & Customization Options

Option	Description
Cable Length	15cm / 30cm / 50cm / Custom
Output Voltage	9V / 12V / 15V (Boosted)
RJ45 Type	Male / Female / Shielded
Logo & Branding	Plug label / Mold logo / Cable tag
Packaging	PE Bag / OEM Printed Zip Bag / Retail Box
