Technical Specifications

Product Introduction

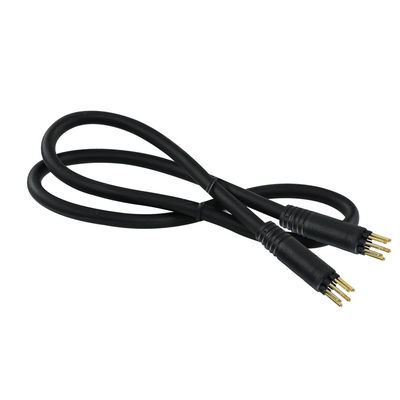

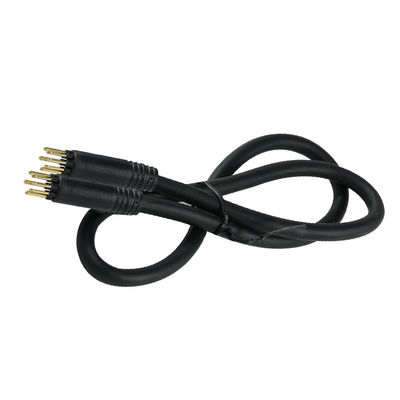

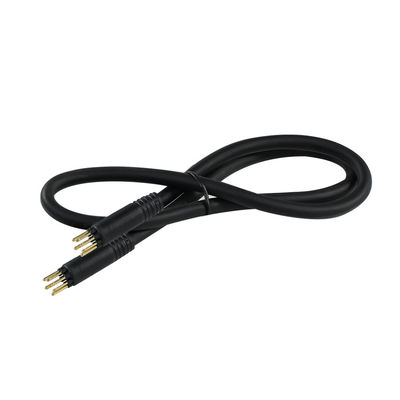

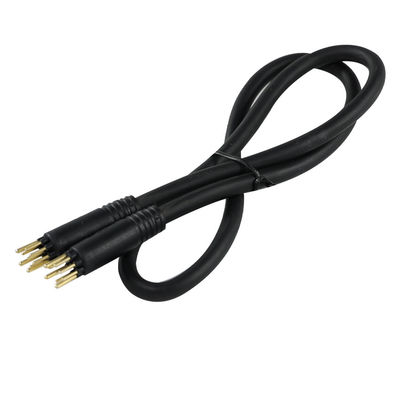

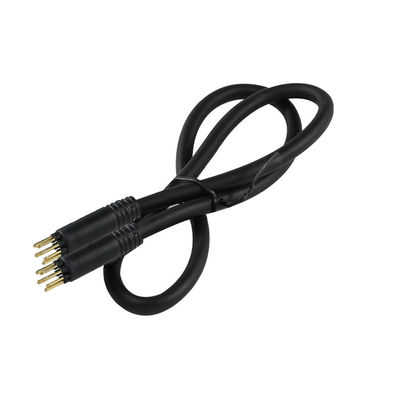

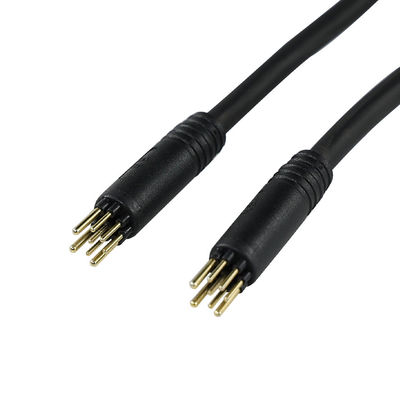

The Multi-Pin Motor Cable is a robust, shielded cable assembly designed for servo motor, actuator, or industrial automation applications. It enables reliable power and signal transmission in dynamic or fixed installations.

Built with multi-core copper wires and shielded layers, this cable resists electromagnetic interference (EMI) and supports accurate signal control in industrial drive systems, CNC machinery, and motion control equipment.

Key Specs

• Multi-Pin Connector – Supports complex signal/power communication

• EMI Shielding – Reduces noise in high-vibration and interference environments

• Secure Locking Design – Ensures firm connection with motor or drive systems

• Power + Signal Integrated – Single cable solution for power, signal, encoder lines

• Abrasion-Resistant Jacket – Suitable for industrial conditions

 Color & Length Options

• Cable Colors: Black / Gray / Custom

• Lengths: 3m / 5m / 10m / 20m / Custom

• Connector Type: Straight / Right Angle / Molded / Field-attachable

• Pin Configuration: Based on application (e.g. 4+2, 3+PE, 12-pin encoder)

 Product Features

• Integrated Motor Cable – Suitable for both power and control signals

• Flexible for Drag Chain Use – Optional high-flex PUR jacket for robotic arms

• Shielded for Noise Reduction – Maintains signal quality in industrial fields

• Customizable Configurations – Pin layout, jacket material, and connector type available

• Easy Installation – Pre-terminated ends reduce on-site wiring time

 Compatible Applications

• Servo Motors and Drives (Siemens, Yaskawa, Delta, etc.)

• Stepper Motors

• Linear Actuators

• CNC Machines

• Robotics and Automation

• Packaging and Assembly Lines

 Safety & Usage Notes

• Ensure correct pin-to-pin connection based on drive/motor configuration

• Avoid sharp bends or pulling forces to maintain shielding integrity

• Use PUR jacket version for oil-resistant or drag-chain environments

• Store dry and protect from UV exposure for extended lifespan
