Technical Specifications

 Product Introduction

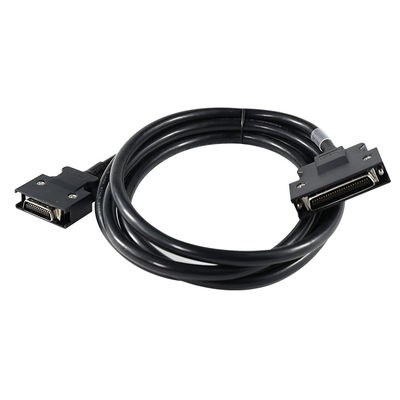

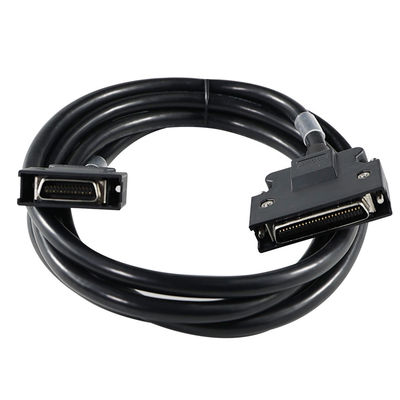

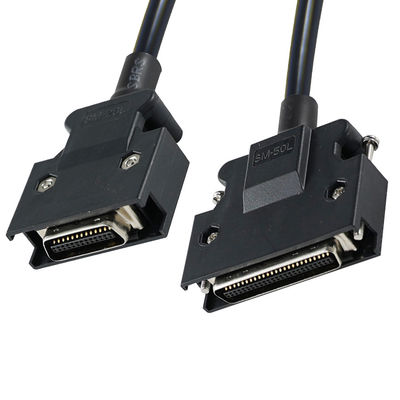

The DB-25 to DB-50 Cable is designed for connecting devices that utilize different D-sub interfaces for data communication, signal transmission, or control systems. This cable bridges a 25-pin D-sub connector with a 50-pin D-sub connector, enabling seamless interaction between legacy and modern industrial hardware.

It’s ideal for use in instrumentation, test equipment, industrial automation, and custom serial/parallel communication applications.

 Key Specs

• DB-25 to DB-50 Interface – Connects devices with mismatched D-sub ports

• Fully or Partially Wired Options – Custom configurations available

• Optional Shielding – Provides EMI/RFI protection for signal integrity

• Durable Build – Molded strain relief for rugged environments

• Customizable Lengths – Available in standard and custom sizes

 Color & Length Options

• Cable Lengths: 1m / 2m / 3m / Custom

• Cable Colors: Black, Gray, or Custom

• Connector Orientation: Straight or Right Angle (Optional)

 Product Features

• Cross-Standard Connection: Perfect for adapting DB-25 ports to DB-50 devices

• Industrial Compatibility: Supports various control and data protocols

• High Signal Integrity: Shielded construction reduces interference

• Long-Term Use: Flexible PVC jacket and secure molded ends

• Custom Pin Mapping Available: For special applications like CNC, test jigs, legacy servers

 Compatible Devices

• Test and Measurement Equipment

• Serial/Parallel Communication Interfaces

• Industrial Control Modules

• Legacy Computers or I/O Cards

• Custom Automation or Data Systems

 Safety & Usage Notes

• Ensure pin assignments match your application—contact us for custom wiring

• Use shielded versions in EMI-prone environments

• Do not exceed recommended length for critical signal timing devices

• Store in dry environment to avoid oxidation of contact points
