Technical Specifications

 Product Introduction

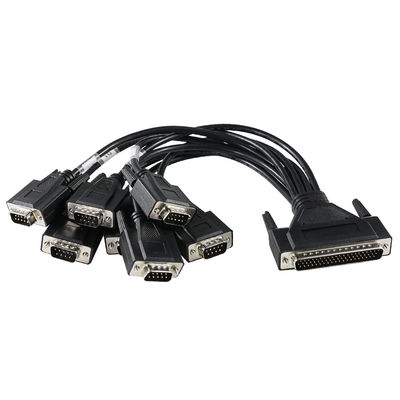

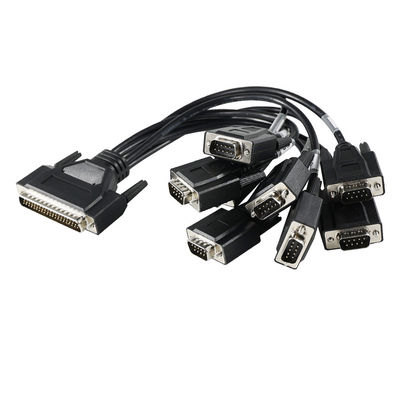

This DB-62 to 7×DB-9 Breakout Cable is designed for multi-channel serial communication, ideal for data acquisition systems, industrial control panels, or RS232 interface boxes. With one DB-62 male connector splitting into 7 DB-9 female ports, it allows multiple RS232 connections through a single interface with stable signal transmission and shielded protection against EMI/RFI interference.

 Key Specs

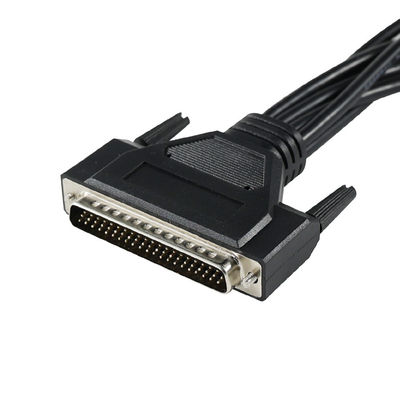

• DB-62 Male Input – Standard D-sub high-density interface

• 7× DB-9 Female Outputs – Supports 7 serial ports simultaneously

• Signal Type – RS232/Serial communication ready

• Double Shielding – Aluminum foil + braid ensures minimal signal loss

• Easy Integration – For device control boxes or test systems

 Length & Build Options

• Cable Lengths: 0.5m / 1m / 1.5m / Custom

• Jacket Options: PVC / LSZH / PU for industrial environments

• Connector Option: With or without mounting screw holes

 Product Features

•  Consolidates 7 RS232 ports into one compact cable solution

•  Ideal for multi-port serial interface cards, breakout boxes

•  Reduces wiring clutter in control cabinets and racks

•  Durable construction, supports frequent plugging/unplugging

•  OEM options: Cable label, pinout map, custom wiring supported

 Compatible Devices

• Multi-port RS232 PCI/PCIe cards

• Serial data acquisition modules

• Industrial PLCs and HMIs

• Modems, sensors, CNC machines

• Breakout test boxes and custom enclosures

 Safety & Usage Notes

• Verify pinout mapping before connecting to RS232 devices

• Do not exceed recommended operating voltage/current

• Shielded cable recommended for environments with strong EMI

• Store in a dry environment to avoid pin oxidation
