Technical Specifications

 Product Introduction

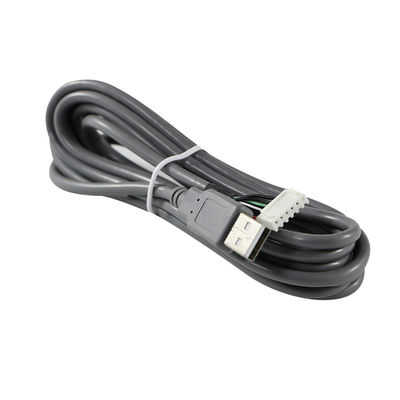

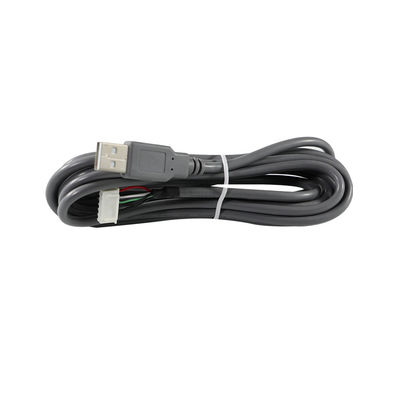

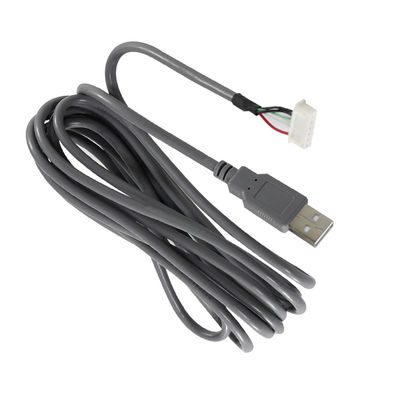

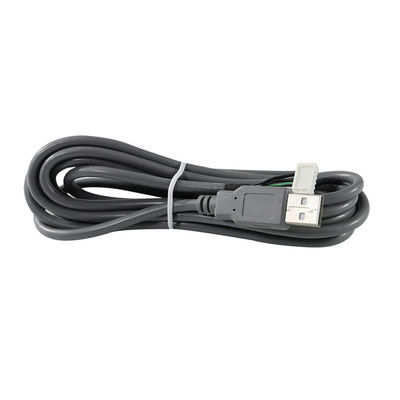

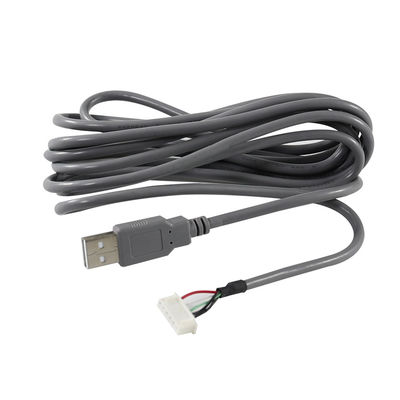

This USB to Terminal Block Cable is designed to provide a reliable and easy connection between USB-enabled devices and bare-wire serial or power interfaces. Ideal for industrial equipment, sensor modules, DIY electronics, and embedded systems, the cable allows quick wiring to open terminal blocks without soldering or adapters.

 Key Specs

• USB A Male Connector – Plugs into any standard USB host

• Screw-Type Terminal Block – Secure wiring with no soldering required

• 5-Pin Layout – Supports VCC, GND, D+, D-, optional SHIELD

• Double Shielded Cable – Stable signal, reduced interference

• Plug and Play – No driver needed for power or passive connections

 Cable Options

• Length Options: 0.3m / 0.5m / 1m / 1.5m / Custom

• Terminal Block Type: 3 / 4 / 5 / 6 Pins (Customizable)

• Color Choices: Default Black, available in Blue / White / OEM

 Product Features

• Compatible with microcontrollers, relay modules, sensors

•  Enables direct access to USB power/data lines via terminal block

•  Tool-free wiring for fast prototyping or field maintenance

•  Ideal for field test instruments, industrial control panels, DIY kits

•  Can be used as USB power breakout or data debugging cable

 Compatible Applications

• Industrial Communication (RS232/RS485 interface boards)

• Arduino, Raspberry Pi, STM32, ESP32 modules

• Power supply and signal breakout testing

• Lab environments and IoT device prototyping

• USB data/power distribution in custom enclosures

 Safety & Usage Notes

• Pinouts must be verified before wiring to avoid damage

• Not designed for high-current power delivery

• Avoid exposure to moisture or strong EMI environments

• Ensure secure terminal tightening to avoid short-circuits

• Do not hot-plug on live load when connected to sensitive devices
