Technical Specifications

 Product Introduction

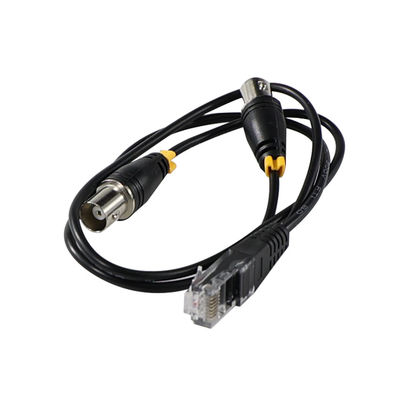

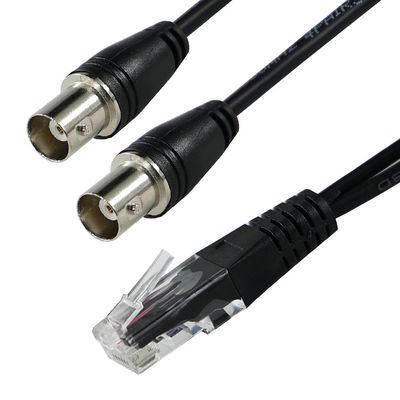

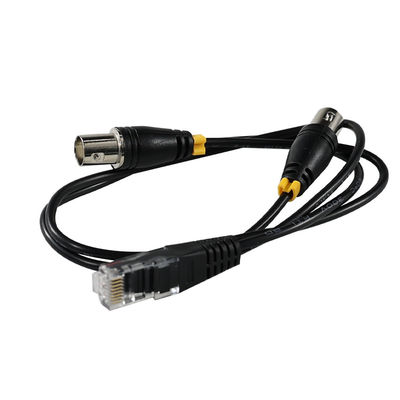

This RJ45 or RJ48 Male to Dual BNC Female Adapter Cable is designed for signal conversion and telecom equipment connectivity, especially for T1/E1 lines. It splits one RJ45 digital signal into two BNC outputs for coaxial transmission. Ideal for telecom rooms, legacy networks, and E1 balun applications.

 Key Specs

• RJ45/RJ48 Male Plug – Compatible with T1/E1/DS1 telecom ports

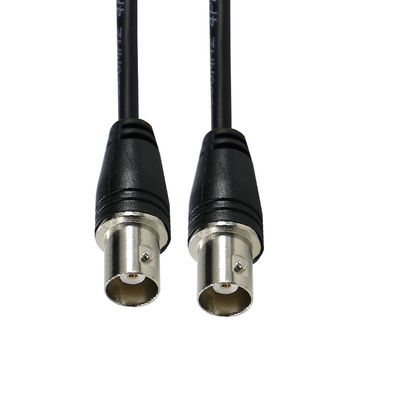

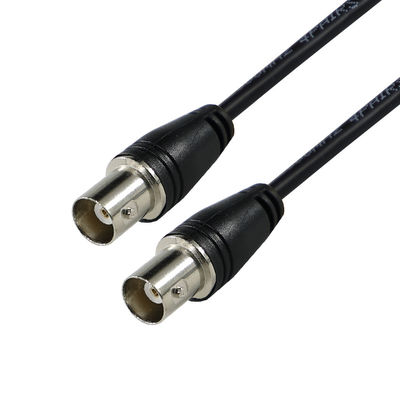

• Dual BNC Female Connectors – Accepts coaxial signal output

• STP Shielded Design – Resists EMI and ensures stable data flow

• Used in Signal Transmission – Especially for digital transmission (balanced to unbalanced)

• No Power Required – Passive, plug-and-play converter

 Color & Size Options

• Length Choices: 3ft/ 4ft / 5ft / 6ft / OEM

• Jacket Colors: Black (default), Blue, Gray

• Custom Configurations: Available on pinout, length, label, and packaging

 Product Features

• Converts digital signal from RJ48 port to dual coaxial BNC interface

•  Designed for telecom, datacom, PBX, and legacy systems

•  Easy installation without tools or configuration

•  Strong, shielded construction for long-term reliability

•  Compact design ideal for rack-mounted equipment or patch panels

Compatible Devices & Applications

• T1/E1 Line Transmission Systems

• Digital Signal Balun or Splitter Setups

• PBX Systems / Legacy Telecom

• Routers, Switches, and Telecom Multiplexers

• Network Monitoring / Tap Devices

 Safety & Usage Notes

• Ensure correct matching of port type (RJ45 vs RJ48; pinouts may differ)

• Do not force connector if misaligned

• For low-voltage digital signal use only – not for power or analog video

• Store in a dry environment to prevent contact oxidation
