Technical Specifications

Product Introduction

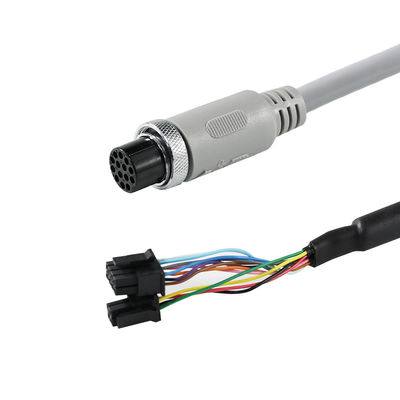

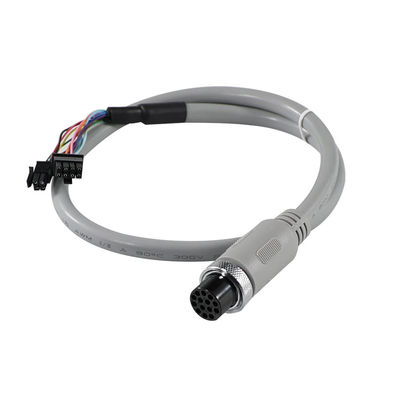

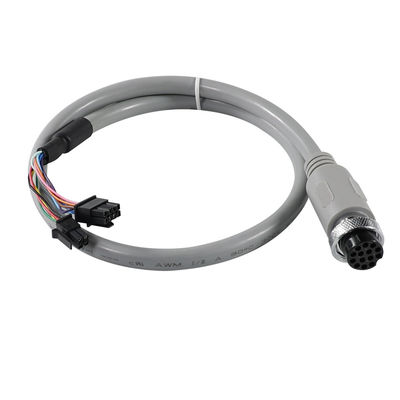

This M12 14-Pin Female Circular Connector Cable Assembly is engineered for secure and stable signal transmission in industrial automation, sensors, and control systems. With an open wire end, it offers easy integration with terminal blocks, PCBs, or custom wiring systems. Durable and flexible, it ensures stable electrical performance even in harsh environments.

 Key Specs

• 14-Pin Female M12 Connector – Supports multi-channel sensor or signal wiring

• Open Wire End – Easily terminates to boards, modules, or distribution blocks

• Secure Locking Thread Design – Prevents vibration-related disconnection

• Industrial-Grade Jacket – Resists oil, bending, and abrasion

• Optional Shielding – Enhances noise immunity for sensitive signals

 Color & Size Options

• Cable Jacket Colors: Black / Grey / Yellow / Custom OEM

• Lengths: 30cm / 1m / 2m / 5m / 10m / OEM Custom

• Wire End Types: Stripped Bare / Tinned / Ferrule Terminal

• Pinout Labels: Numbered / Color-coded / Printed upon request

 Product Features

•  Compatible with most industrial M12 field devices and controllers

•  Ideal for use in factory automation, robotics, sensor arrays

• Anti-vibration threaded connection ensures secure fit

•  Flexible cable jacket for easy routing in tight panels

•  Custom pinout and color-coding service available

 Compatible Devices

• Proximity Sensors

• Industrial PLC Modules

• Servo Drive Systems

• I/O Extension Boards

• Machinery Wiring Harness

• Robotics Signal Interfaces

Ensure 14-pin M12 layout compatibility before connection. This is a signal cable and not intended for high-voltage or AC power use.

 Safety & Usage Instructions

• Do not exceed voltage or current limits

• Not designed for wet environments unless specified waterproof grade

• Route cables to avoid pinch or tension points

• Secure connectors tightly using thread lock, not excessive force

• Store in a cool, dry environment away from static discharge sources
