Technical Specifications

 Product Introduction

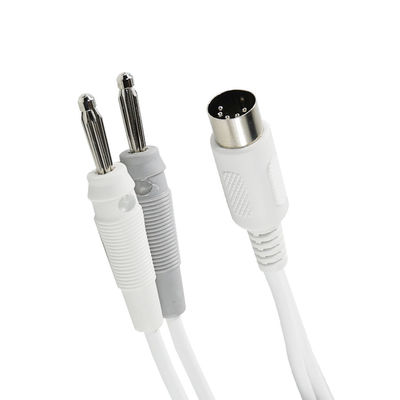

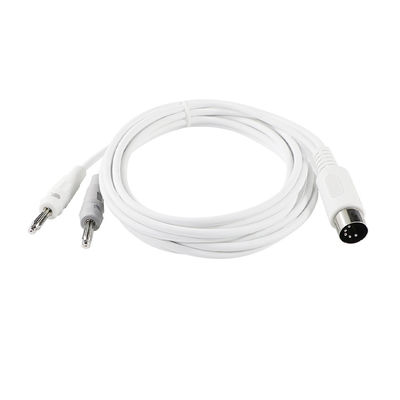

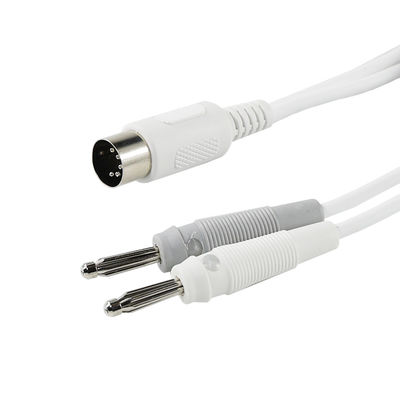

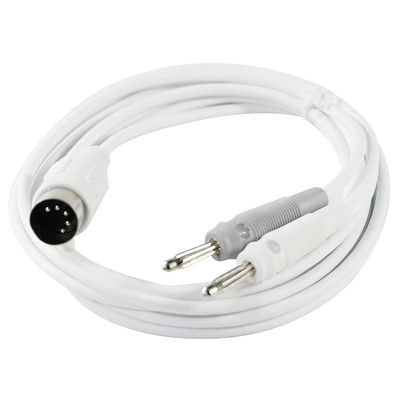

This 5 Pin 180° DIN Female to Dual Banana Plug Cable Assembly is commonly used in audio testing, laboratory signal measurement, and power supply interface setups. It allows for direct connectivity between vintage DIN ports and lab-grade banana terminals, offering high signal integrity and easy installation.

 Key Specs

• DIN 5-Pin Female Connector – Compatible with standard 180° audio/MIDI pinouts

• Dual Banana Plugs – Color-coded (red/black) for easy polarity identification

• Optional Shielding – Reduces signal interference in test environments

• Flexible and Durable PVC Jacket – Supports frequent bending and movement

• Firm Connection Fit – Ensures signal stability during operation

 Color & Size Options

• Cable Color: Black / Grey / Red / Custom Available

• Length Options: 0.5m / 1m / 2m / 3m / OEM Custom

• Banana Plug Options: Stackable / Shrouded / Gold-Plated Optional

• Connector Angle: Straight / Right-Angle DIN Optional

 Product Features

•  Converts legacy DIN signal to banana interface for lab use

•  Suitable for audio analyzers, DC regulated power supplies, signal tracing

•  Reusable and long-lasting with minimal signal degradation

•  OEM customization: connector orientation, labeling, color, length

 Compatible Devices

• Audio Testing Instruments

• DC Power Supply Units

• Signal Generators & Multimeters

• Legacy Audio Equipment (with 5-Pin DIN Output)

• Educational Test Benches

• Laboratory Power Terminals

This product is for signal or low-voltage DC use only. Not rated for AC mains power.

 Safety & Usage Instructions

• Use within rated voltage/current to prevent overheating

• Verify DIN pin layout before connection

• Do not expose cable to moisture or corrosive chemicals

• Secure banana plugs into matching sockets to avoid contact short

• Store in dry and dust-free environment when not in use
