Technical Specifications

Product Introduction

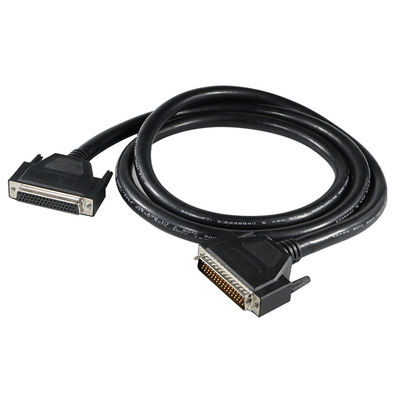

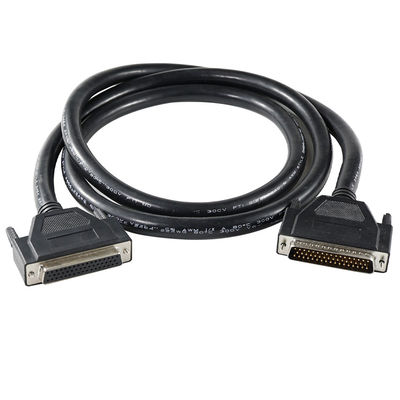

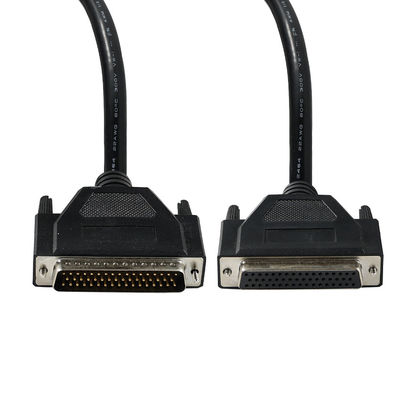

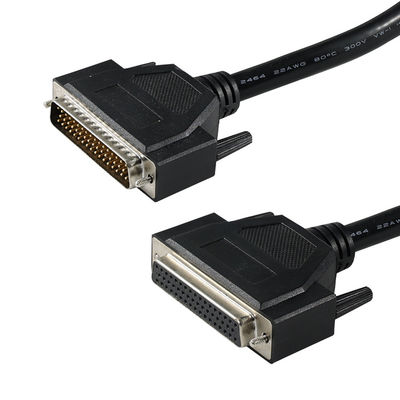

The DB-50 Male to Female Parallel Extension Cable is designed for extending legacy parallel or multi-channel signal interfaces. It is ideal for industrial communication systems, test equipment, and legacy hardware requiring 50-pin D-sub connectivity. The shielded construction ensures stable performance in electrically noisy environments..

 Key Specs

• DB-50 Pinout – 50-pin (25 pairs) D-sub style parallel interface

• Male to Female Extension – Ideal for panel mount or inline usage

• Double Shielded – Foil + braid shielding for improved EMI protection

• Thumbscrews for Secure Fit – Prevents loose or vibrating connections

• Gold-Plated Contacts – Enhances conductivity and resists corrosion

Color & Size Options

• Color Options: Black / Beige / OEM Custom

• Cable Lengths: 1m / 1.5m / 3m / 5m / Others on request

• Connector Housing: Straight / Right Angle Optional

• Packaging: Plastic Molded / Metal Hood / EMI Shielded

 Product Features

• Suitable for legacy data transfer systems and industrial controllers

•  Thumbscrews provide tool-free, secure connection

•  Easily integrates with breakout boards or backplanes

•  Highly flexible jacket for confined installation spaces

•  OEM customization available for pinout, length, and labeling

•  Compatible Devices



  Compatible Devices

  • Parallel Port Expansion Interfaces

  • Industrial I/O Controllers

  • Test & Measurement Equipment

  • CNC Machines / PLC Backplanes

  • Legacy Communication Systems

  • DB50 to Terminal Block Converters

  For signal use only – not suitable for high-power connections. Verify DB-50 pin compatibility before installation.

  ---

   Safety & Usage Notes

  • Ensure correct pinout before use to avoid signal damage

  • Use in dry, clean environments; not suitable for outdoor installations

  • Avoid sharp bends near the connector ends

  • Custom labeling or strain relief available upon request
