Technical Specifications

Product Introduction

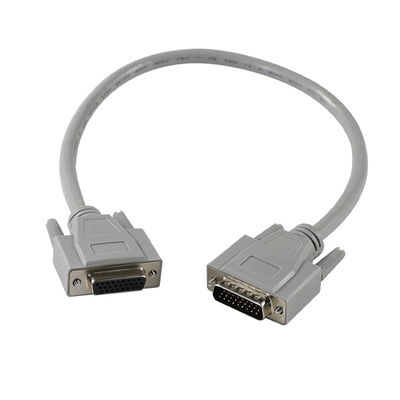

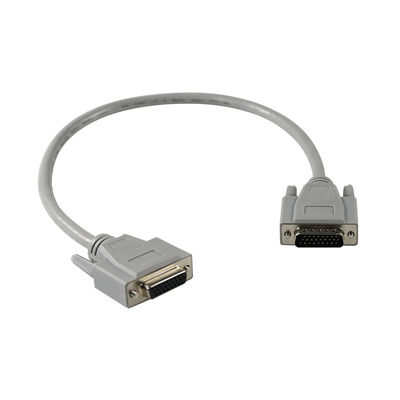

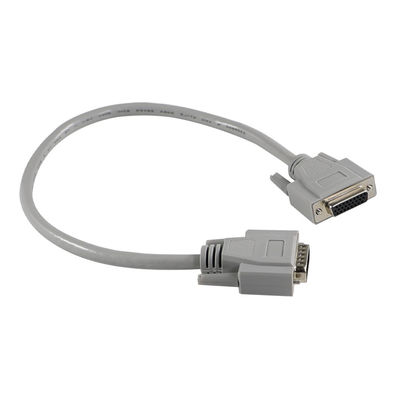

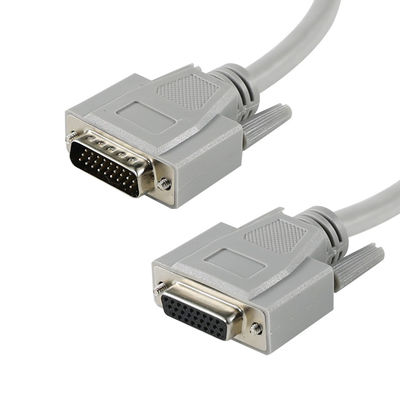

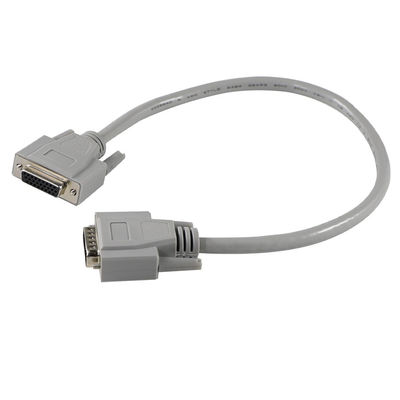

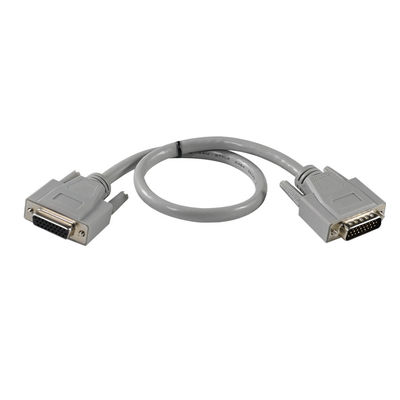

This DB26 Male to Female Parallel Extension Cable is designed for extending existing DB26 signal connections in industrial control systems, CNC automation equipment, or signal testing environments. Built with high-purity copper conductors and full 26-pin mapping, the cable supports stable and interference-free data transmission.

 Key Specs

• DB26 1:1 Extension Wiring – Maintains original signal layout

• Full 26-Pin D-sub Compatibility – Supports high-density parallel connections

• Durable Molded Shell – Offers strain relief and long lifespan

• Double Shielding – Reduces EMI/RFI interference

• Thumbscrews on Both Ends – Ensures stable and secure mating

 Color & Size Options

• Color Options: Black / Beige / OEM Custom

• Cable Lengths: 1m / 1.5m / 3m / 5m / Others on request

• Connector Housing: ABS Molded / Metal Shell Optional

• Packaging:PE Bag / Anti-static Bag / Custom Retail Box

 Product Features

• Extend existing DB26 connections with minimal signal loss

•  Molded connector with thumbscrews for secure installation

•  Ideal for industrial, control cabinet, and test bench setups

•  EMI-shielded cable ensures high signal integrity

•  Custom lengths and pinouts available upon request

 Compatible Devices

• CNC Controller Boards (DB26 Interface)

• Industrial Signal Modules

• I/O Expansion Boxes

• Parallel Port Devices

• Legacy Test Equipment

This cable is intended for signal transmission only. Ensure DB26 compatibility with your equipment.

 Safety Information

• Not designed for power transmission or high-voltage use

• Avoid sharp bends or mechanical stress during routing

• Store in dry and static-free environment

• Clean connectors before installation to ensure contact reliability

• Custom pin mapping available — please provide your diagram if needed
