Technical Specifications

Product Introduction

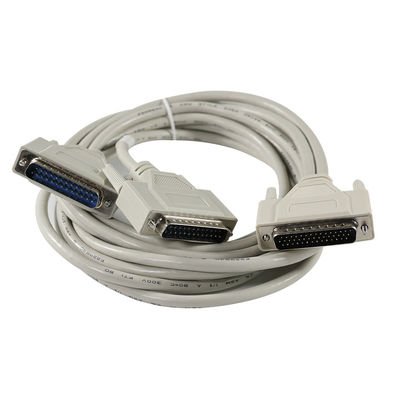

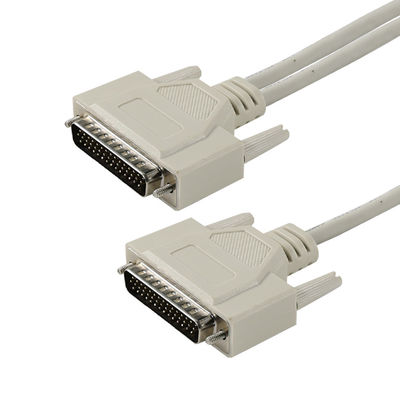

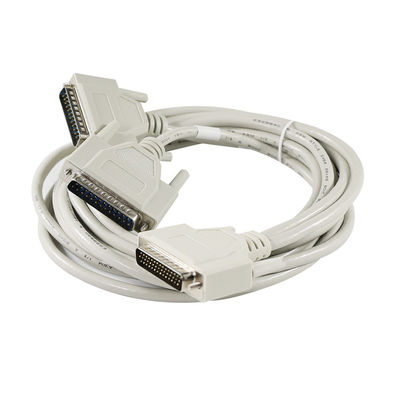

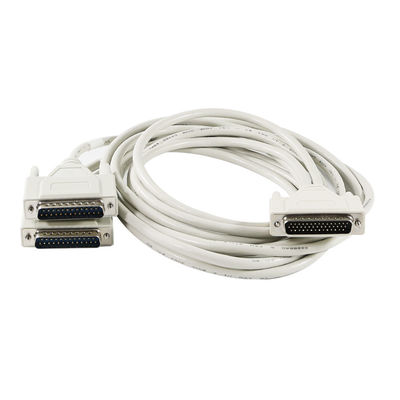

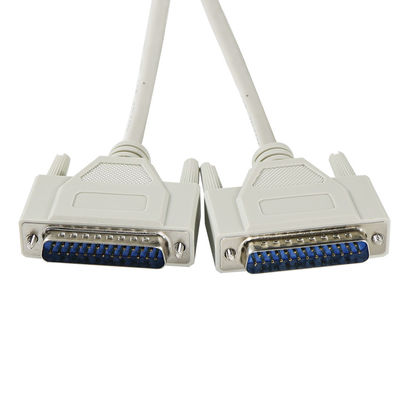

This DB44 to Dual DB25 Male Splitter Cable is designed to split high-density DB44 signal outputs into two standard DB25 connectors. It is widely used in CNC motion control systems, industrial I/O interfaces, and multi-axis breakout boards. The cable offers stable and secure signal routing for simultaneous device connections.

 Key Specs

• DB44 Male to 2 × DB25 Male – Enables dual-device connection from one port

• Parallel or Custom Pinout Wiring – Suitable for CNC, I/O breakout, and automation

• Rugged Molded Connectors – With strain relief and thumbscrews for firm installation

• Flexible Lengths – Ready for control cabinets, desktop setups, or panel routing

• Shielded Cable – Ensures signal integrity and EMI protection

Color & Size Options

• Color Options: Black / Beige / OEM Custom

• Cable Lengths: 1m / 1.5m / 3m / 5m / Others on request

• Connector Housing: DB44 Male to Dual DB25 Female

• Packaging: PE bag / Ziplock / Retail box (customizable)

 Product Features

•  Dual Output from One DB44 Source

•  Plug-and-play with CNC motion cards, printer ports, or signal breakout modules

• Thumbscrews for tool-free secure connection

• Low-signal-loss transmission for industrial environments

•  Heavy-duty molded build suitable for embedded applications

 Compatible Devices

• CNC Controller Boards (e.g. Motion Axis Controllers)

• Industrial Breakout Boxes

• Custom RS232/TTL Interfaces

• Stepper Motor Drivers (DB25 Interface)

• I/O Expansion Modules with Parallel Control Ports

Ensure your DB44 and DB25 ports follow standard signal mapping or request custom pinout if needed.

 Safety Information

• For signal use only; not rated for power transmission

• Do not plug into non-standard ports without confirming wiring

• Avoid cable stress or twisting during installation

• Store in dry, anti-static environment

• Contact us for custom length or pinout service if needed
