Technical Parameters

• Input Plug: Switzerland SEV 1011 Type 3-Pin (10A/250V)

• Output Connector: IEC 60320 C13 (Straight/Right-Angle Options)

• Cable: 3×0.75mm² PVC Sheath (1.5M/3M Customizable)

• Temperature Rating: -30°C to +70°C

• Safety Standard: Fully compliant with EU/IEC electrical requirements

Product Introduction

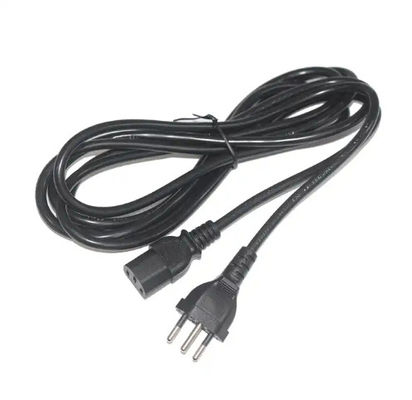

This heavy-duty power cord provides reliable connectivity between Switzerland standard wall outlets and global C13 interface devices. Engineered with oxygen-free copper conductors and flame-retardant insulation, it ensures stable power transmission for:
• Desktop computers & servers
• Printers & network equipment
• Medical/industrial instruments

Optional configurations:
 Single C13 output (straight/right-angle)
 1-to-2 splitter design (Dual C13 outlets)

Key Specs

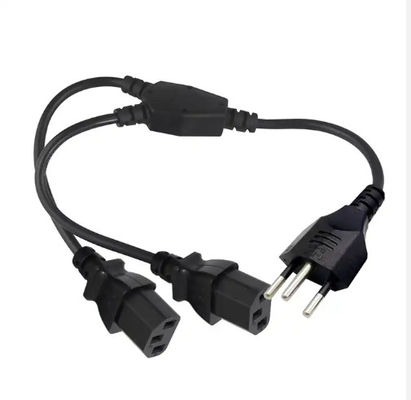

• Dual Output Design: One Swiss SEV 1011 3-pin plug to two IEC C13 connectors (straight or 90° angled), enabling simultaneous power supply for two devices.
• High-Current Capacity: Supports up to 10A/250V for stable power delivery to servers, medical equipment, or office devices.
• Flexible Configuration: Angled C13 connectors save space in tight installations, while straight connectors suit standard setups.
• Robust Construction: Heavy-duty 18/3 AWG copper conductors with flame-retardant outer sheath (IEC 60227 compliant).
• Safety Compliance: Overload protection, reinforced grounding, and triple-layer insulation for secure operation.

Color & Dimensions

• Available Colors: Black/White (Custom colors MOQ 500pcs)

• Plug Size: 65×35×28mm (L×W×H)

• C13 Connector: 44.5×35.8×18.2mm

Product Highlights

Precision Compatibility
Accurate pin spacing (19mm) matches Switzerland outlets, while C13 connector ensures universal fitment with standard device inlets.

 Safety-First Design
Reinforced stress relief collars prevent wire fatigue. Non-slip grip texture enhances plugging stability.

 Flexible Configuration

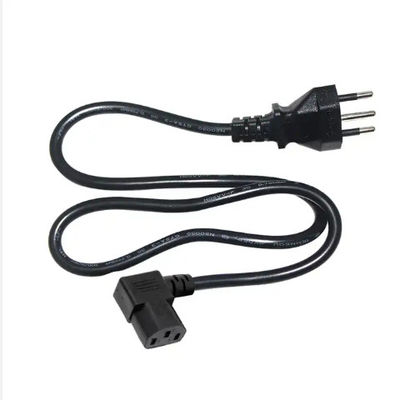

Right-angle version saves 40% space behind equipment. Splitter model allows dual-device connection without adapters.

Durable Construction
Shielded against 15,000+ insertion cycles. Passed 5KG vertical load test (IEC 60320 standard).

Detailed Technical Parameters

Compatible Devices

Safely powers equipment with standard C14 inlets:

• Computer power supplies

• UPS systems

• Data center racks

• Laboratory instruments

• Commercial appliances

Safety Information

 Critical Notices:

1. Do NOT exceed 10A/250V rating

2. Avoid exposure to oils/chemicals

3. Discontinue use if discoloration/deformation occurs

4. Professional installation required for permanent wiring

Compliance Assurance:
This product strictly follows IEC 60320 international specifications. All materials meet EU environmental directives (No specific certification marks included per platform policy).
