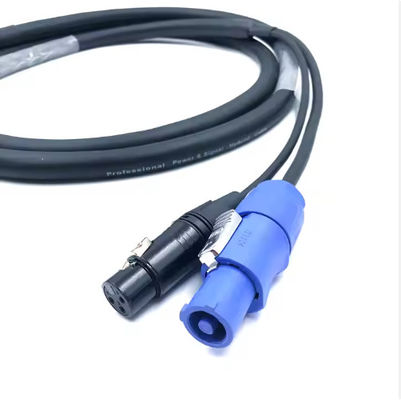

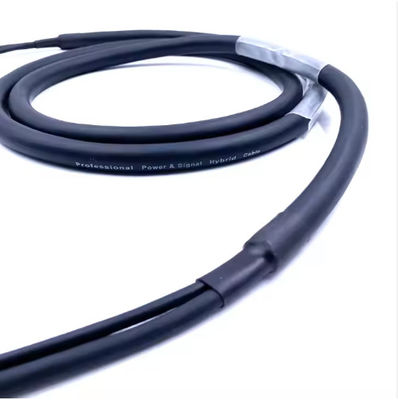

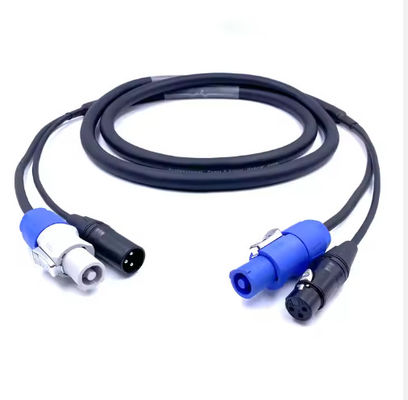

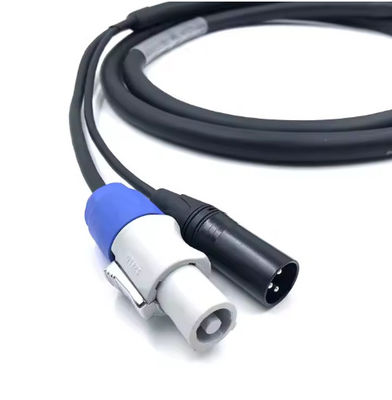

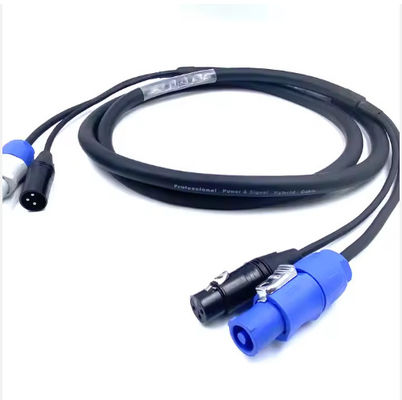

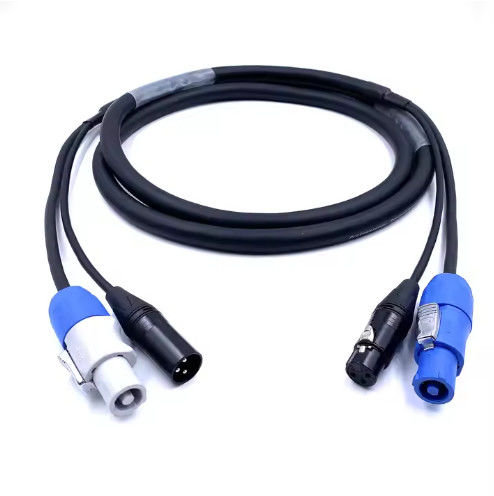

3-Pin XLR to Powercon True1 Hybrid Cable
Power + DMX Signal in a Single Cable
This professional hybrid cable combines a 12A/250V Powercon True1 power connector and a 3-pin XLR DMX signal line, designed for stage lighting, tour rigs, and moving heads.
Key Features:
- Dual Functionality: Eliminates separate power and DMX cables
- 12A/250V Rating: Powers LED fixtures and moving heads
- 110Ω Shielded DMX Line: Signal integrity for long runs
- Neutrik/Conus Connectors: Road-tested durability
Explore our full range of pro audio cables or see how this cable performs on tour.
3-Pin IP65 Powercon Connector 20A 250V AC - IEC 60309 Locking Industrial Power Plug
| Parameter |
Specification |
| Voltage/Current Rating |
250V AC, 20A |
| Contact Resistance |
≤3 mΩ |
| Insulation Resistance |
>100 MΩ (after damp heat test) |
| Dielectric Strength |
4 kV DC / 2.8 kV AC |
| Material |
Shell: Polyamide (PA 6.6 30% GR), Contacts: Bronze (CuNi1Si0.2) |
| Temperature Range |
-25°C to +80°C (operational) |
| Mechanical Life |
>1,000 mating cycles |
| Protection Rating |
IP44 (dustproof and splash-resistant) |
| Certifications |
UL 1977, EN 61984, IEC 60309-compliant |
| Connector Type |
3-pin PowerCON (locking mechanism, pre-mating ground contact) |
| Wire Gauge Compatibility |
14–10 AWG (compatible with IEC 60309 Series II standards) |
| Mounting |
Front panel-mount |
| Safety Features |
Polarized design (anti-mismating), quick-lock mechanism; not for live disconnection |
| Applications |
Professional audio systems, industrial machinery, rugged power distribution |
Notes:
- Voltage/Current: Aligns with IEC 60309 Series II standards for industrial connectors, rated for 20A/250V .
- Materials: Polyamide shell ensures durability, while bronze contacts provide low resistance and high conductivity
.
- Safety Compliance: Includes pre-mating ground contact to enhance safety in demanding environments
.
- Protection: IP44 rating ensures resistance to dust and water splashes, suitable for outdoor and industrial use .
- Certifications: Meets UL, EN, and IEC standards for global compatibility
.
For detailed technical drawings or regional specifications (e.g., North American vs. European configurations), refer to the IEC 60309 standardization documents
or manufacturer datasheets
Frequently Asked Questions (FAQ)
Q1. Are you factory or trade company?
A: We are factory of more than 16 years export experience.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. Samples ?
A: 2-5 pieces free samples are available, freight on you. Delivery time usually is 2-3 days. Customized samples will take 5-10 days.
Q5. What is delivery time if we place an order?
A: It depends order quantities. Usually, we can deliver goods within 10-15 working days, for more QTY order, let's confirm when you place official order.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q7. How to ship out the cargo?
A: At your request, by sea, by express, all are available.
