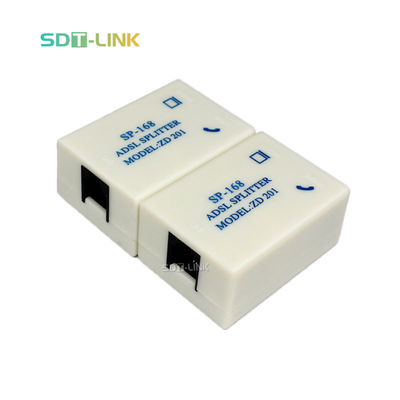

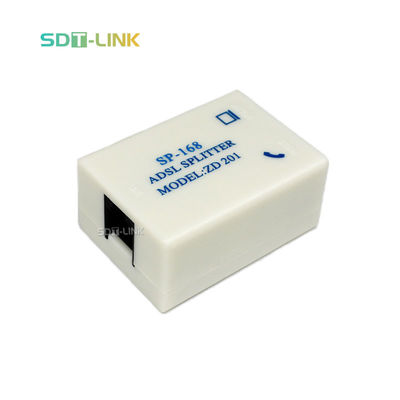

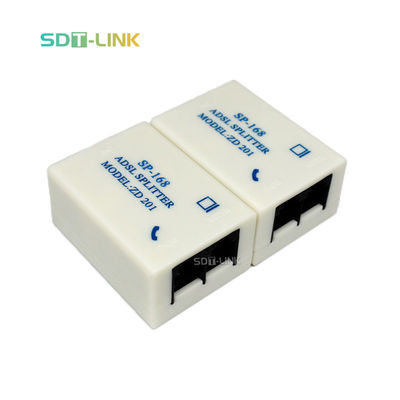

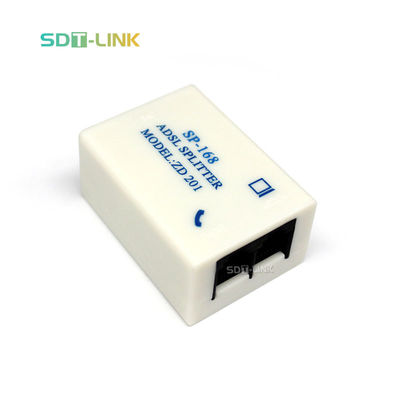

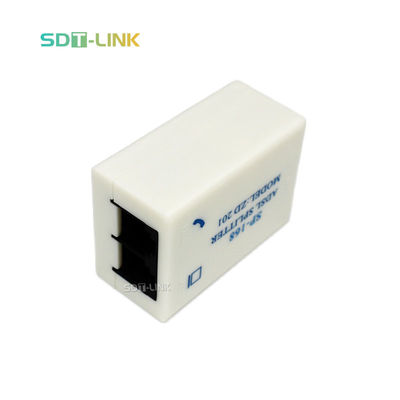

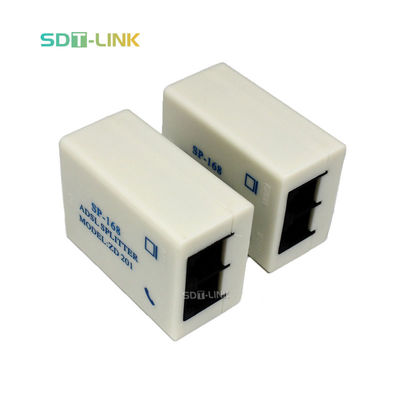

SP-168 ADSL RJ11 RJ45 Telephone Broadband Splitter 60 Watts Average Power 4.4MHz Bandwidth

Large Image : SP-168 ADSL RJ11 RJ45 Telephone Broadband Splitter 60 Watts Average Power 4.4MHz Bandwidth

Product Details:

Place of Origin:	Hunan, China
Brand Name:	OEM Brand, SDT-LINK
Model Number:	SDT-ADS121

Payment & Shipping Terms:

Minimum Order Quantity:	100 pieces
Price:	$0.79/pieces 100-499 pieces
Packaging Details:	1pcs/bag <br>500pcs/box

Contact Now

SP-168 ADSL RJ11 RJ45 Telephone Broadband Splitter 60 Watts Average Power 4.4MHz Bandwidth

Description

Type:	ASDL	Port:	2 Port US ADSL
Gender:	Female	Category:	RJ45/RJ11 Telephone Adapter
Name:	Telephone/Computer	Material:	ABS Plastic
Power Frequency:	60KHz	Average Power:	60 Watts
Color:	White	Band Width:	4.4MHz
Application:	Teleommunication
Highlight:	60 Watts Broadband Splitter , 4.4MHz Broadband Splitter , RJ45 Broadband Splitter

ADSL RJ11/RJ45 Splitter & Connectors

ISP-Grade Solutions for Telephone Line Broadband Connections

ADSL2+ Certified IEEE 518 Noise Standard Gold Plated Contacts IDC/Punchdown Terminations

Core Specifications

Connector Type: Female RJ11 (6P2C) ×2, RJ45 (8P8C) ×1
Frequency Separation: 4kHz cut-off (±0.5kHz tolerance)
POTS Insertion Loss: ≤ 0.3dB @ 1kHz
ADSL Bandwidth: Up to 2.2MHz (ADSL2+ compatible)
Contact Resistance: ≤ 25mΩ (initial)
Surge Protection: 1kV/1kA (8/20μs waveform)

Compatible Standards

ITU-T G.992.5 (ADSL2+)
ANSI T1.413 Issue 2
ETSI TS 101 952-1
IEEE 518 (Noise Control)
BS 6312 (UK Telephone Sockets)
FCC Part 68 (US Telecom)

Standard Installation Wiring

        WALL JACK ────[FILTER]───→ PHONE
             │
             └──────→ MODEM
        Color Code:
        - Line 1: Red (Ring), Green (Tip)
        - Line 2: Black (Ring), Yellow (Tip)

Note: Always disconnect DSL modem before wiring

Troubleshooting Common Issues

Symptom	Likely Cause	Solution
ADSL sync drops when phone rings	Missing/inadequate splitter	Install filter on all phone devices
"Noise" on telephone line	High-frequency signal leakage	Verify splitter Hi/Lo-pass filters
Slow broadband speeds	RJ11 connector oxidation	Clean contacts with isopropyl alcohol
No dial tone with filter	Reverse polarity wiring	Swap tip/ring connections

Regional Compatibility

North America

AT&T U-verse filters
CenturyLink DSL modems
Comcast Xfinity Voice

Europe/UK

BT Openreach faceplates
Deutsche Telekom TAE ports
Orange France splitters

Asia-Pacific

NTT Docomo Japan
Singtel ADSL2+
Telstra Australia

Product Description

Product Name	Telephone broadband splitter ADSL splitter 1 minute 2 shunt filter Telecom ADSL voice splitter
Port	2 port US ADSL
Gender	Female
Category	RJ45/RJ11 Telephone Adapter
Name	telephone/Computer
Material	ABS Plastic
Power Frequency	60KHz
Average Power	60 Watts
Color	White
Band width	4.4MHz
Application	Teleommunication

Product Characteristics and Packaging :

When using a DSL connection with a telephone or fax machine, it's necessary to put a filter on the line to separate the signals for the modem (higher-frequency ADSL) from the signals for the phone and fax (lower-frequency POTS). This filter/splitter has three RJ11 jacks to do just that. Connect the 'line' jack to your wall outlet cable, and connect the 'phone' and 'modem' jacks to your phone or fax line, and to the modem. Each jack is conveniently labeled. Signal quality is preserved and your connections stay clear of static and noise from interference.
