8P8C 8P6C Cat6 Cat6e Cat7 Cat8 Network Cable UTP Patch Cord Jumper 1-10m

8P8C 8P6C Cat6 Cat6e Cat7 Cat8 Network Cable UTP Patch Cord Jumper 1-10m
8P8C 8P6C Cat6 Cat6e Cat7 Cat8 Network Cable UTP Patch Cord Jumper 1-10m 8P8C 8P6C Cat6 Cat6e Cat7 Cat8 Network Cable UTP Patch Cord Jumper 1-10m 8P8C 8P6C Cat6 Cat6e Cat7 Cat8 Network Cable UTP Patch Cord Jumper 1-10m 8P8C 8P6C Cat6 Cat6e Cat7 Cat8 Network Cable UTP Patch Cord Jumper 1-10m 8P8C 8P6C Cat6 Cat6e Cat7 Cat8 Network Cable UTP Patch Cord Jumper 1-10m 8P8C 8P6C Cat6 Cat6e Cat7 Cat8 Network Cable UTP Patch Cord Jumper 1-10m

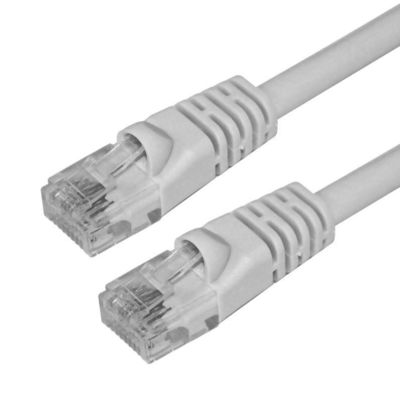

Large Image :  8P8C 8P6C Cat6 Cat6e Cat7 Cat8 Network Cable UTP Patch Cord Jumper 1-10m

Product Details:
Place of Origin: Guangdong, China
Brand Name: KUNCAN
Model Number: NW--0314
Payment & Shipping Terms:
Minimum Order Quantity: 500 pieces
Price: $0.60/pieces 500-999 pieces
Packaging Details: pe to cartons or at your request.<br>carton=40x40x27cm
Delivery Time: 25days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 1000PCS/Per Week
Contact Now

8P8C 8P6C Cat6 Cat6e Cat7 Cat8 Network Cable UTP Patch Cord Jumper 1-10m

Description
Number Of Conductors: 8 Type: Cat 6/CAT5/CAT5E/CAT7
Application: Networking Sysytem Jacket Material: PVC
Conductor Material: Copper Colour: White/gray
Length: 1-10m Wechat: Aron113820
Wires: 8P8C 8P6C Shield: YES
Warranty: 2 Years
Highlight:

Cat8 Network Cable 10m

,

UTP Patch Cord 10m

,

8P6C Cat8 Network Cable

UTP Cat6 LAN Cable with RJ45 Connectors

550MHz Bandwidth • 10Gbps Ready • 24AWG Bare Copper

TIA/EIA-568-C.2 Certified RoHS Compliant 100% Copper 550MHz Bandwidth
[High-res cable with RJ45 connectors] [Close-up of gold-plated contacts] [Cable cross-section showing twisted pairs]

Technical Specifications

  • Category: Cat6 UTP (Unshielded Twisted Pair)
  • Speed: 10Gbps @ 55m / 1Gbps @ 100m
  • Bandwidth: 550MHz
  • Conductor: 24AWG solid bare copper
  • PoE Support: Up to IEEE 802.3bt (PoE++)
  • Jacket: PVC (CM/CMR) or LSZH options
  • Connectors: Gold-plated RJ45 (8P8C)
  • Impedance: 100Ω ±15%

Available Options

  • Lengths: 0.5m to 305m bulk spools
  • Colors: Blue, Black, White, Red, Green, Yellow
  • Jacket Rating: CM (General), CMR (Riser), CMP (Plenum)

Key Features

10Gbps Performance

Supports 10GBASE-T Ethernet at reduced distances (up to 55m) with backwards compatibility to 1000BASE-T.

Enhanced PoE Support

Delivers up to 90W (802.3bt PoE++) for power-hungry devices like PTZ cameras and WiFi 6 access points.

Precision Engineering

Precisely twisted 4 pairs with differentiated twist rates to minimize NEXT and FEXT interference.

Detailed Technical Specifications

Parameter Specification
Standard Compliance TIA/EIA-568-C.2, ISO/IEC 11801 Class E
Conductor Material 24AWG solid bare copper (±0.002")
DC Resistance ≤ 9.38Ω/100m @ 20°C
Propagation Delay ≤ 548 ns/100m (max)
Attenuation @ 250MHz ≤ 36.6 dB/100m
PSNEXT ≥ 42.3 dB @ 250MHz
Operating Temperature -20°C to 75°C (-4°F to 167°F)
Bend Radius ≥ 8x cable diameter

Recommended Applications

  • Network Infrastructure: 10Gbps switches, servers, NAS devices (up to 55m)
  • PoE++ Systems: High-power devices like PTZ cameras, LED lighting
  • Data Centers: Top-of-rack switching, server interconnects
  • AV Systems: HDBaseT extenders, digital signage
  • Gaming/Streaming: Low-latency connections for competitive gaming

UTP Jumper Patch Cord Cat5 Cat5e Cat6 Cat6e Cat7 Cat8 Network Ethernet Rj45 Cat8 Lan Cable


 8P8C 8P6C Cat6 Cat6e Cat7 Cat8 Network Cable UTP Patch Cord Jumper 1-10m 0

 8P8C 8P6C Cat6 Cat6e Cat7 Cat8 Network Cable UTP Patch Cord Jumper 1-10m 1

8P8C 8P6C Cat6 Cat6e Cat7 Cat8 Network Cable UTP Patch Cord Jumper 1-10m 2


Specifications



 UTP Jumper Patch Cord Cat5 Cat5e Cat6 Cat6e Cat7 Cat8 Network Ethernet Rj45 Cat8 Lan Cable
Property   Value Units
DC Conductor Resistance Max.   9.38 Ω/100m
Resistance Unbalance Max.   2%
Mutual Capacitance Nom. @1kHz 5.6 nF/100m
Capacitance Unbalance pair/ground Max. @1kHz 160 pF/100m
Characteristic Impedance 0.772 -100 MHz 100+15 Ω
Maximum Delay Skew 1.0-100 MHz 45 ns/100m
Velocity of Propagation   68% Speed of Light
Maximum Propagation Delay 10 MHz 545 ns/100m


Customer comments-1

8P8C 8P6C Cat6 Cat6e Cat7 Cat8 Network Cable UTP Patch Cord Jumper 1-10m 3


Company Information



 8P8C 8P6C Cat6 Cat6e Cat7 Cat8 Network Cable UTP Patch Cord Jumper 1-10m 4
