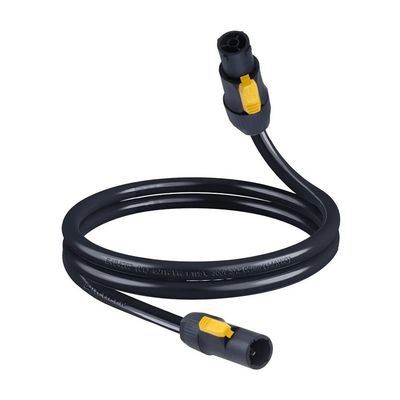

Name: Lockable PowerCon True1 Male To Female 20A Cable for Safe and Secure For Stage Light
Brand: Shenzhen Kuncan Electronics Co., Ltd.
SKU: KC-US-C13
Price: 150.25 USD
Availability: InStock

Place of Origin:

Guangdong, China

Brand Name:

KUNCAN

Model Number:

KC-US-C13

Minimum Order Quantity:

300 pieces

Price:

$1.25/pieces 300-4999 pieces

Packaging Details:

PE Bag/pcs

Delivery Time:

15days

Payment Terms:

L/C,D/A,D/P,T/T,Western Union

Supply Ability:

1000PCS/Per Week

Type:

AC Power Cord

Application:

Home Appliance

Male End Type:

NEMA

Female End Type:

IEC

Plug Standard:

Other

IP Level:

IP11

AC Outlets Quantity:

1 Outlets

Cable Length:

0.5m

Name:

Treu1 Male To Female Connector

Cable:

SVT 18AWG/ SJT 14AWG/3C

Connector:

True1

Rating Voltage:

125V

Rating Current:

10A/15A

Conductor:

Copper,CCA,CCS

Jacket:

PVC

Colour:

Black

Length:

1m-10m

Highlight:

Safe PowerCon Cable Splitter

10m PowerCon Cable Splitter

1m PowerCon Cable Splitter

Key Features

20A Continuous Current Rating (IEC 60309 compliant)

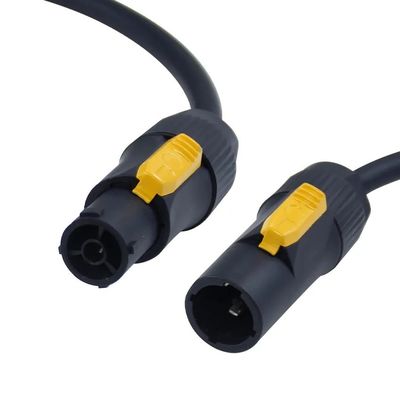

Neutrik True1 Series (NAC3FCA male to NAC3FCB female)
UL/CE/RoHS Certified for permanent installations
Heavy-Duty Construction: 12 AWG 3-conductor cable
360° Strain Relief for touring applications
Incompatible with Classic PowerCon (blue/grey connectors)

Technical Specifications

Connectors

Type A: NAC3FCA (True1 Top - Male)
Type B: NAC3FCB (True1 Inlet - Female)
Contact Material: Copper alloy with silver plating

Electrical Ratings

Current: 20A continuous, 25A peak
Voltage: 250V AC
Frequency: 50/60Hz

Cable Construction

Conductor: 12 AWG (3.31mm²) x 3
Insulation: XLPE (105°C rated)
Jacket: Black EPDM rubber

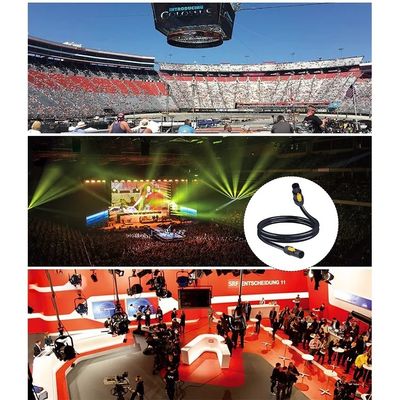

Recommended Applications

Professional Audio Systems

Power distribution for high-current amplifiers (L-Acoustics, Powersoft) and DSP units

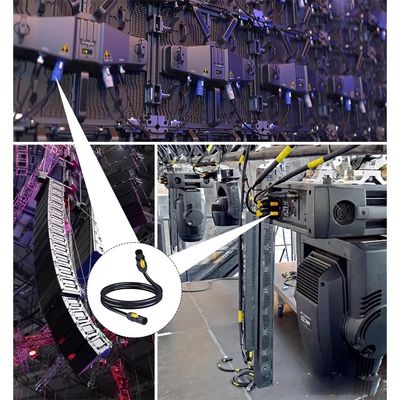

Touring Lighting Rigging

Interconnect for moving lights and LED walls requiring 20A service

Permanent Installations

Theaters, houses of worship, and broadcast facilities where UL listing is required

⚠️ Compatibility Notice

True1 connectors (black) are not mechanically compatible with classic PowerCon (blue/grey). Ensure all connected equipment uses True1 inlets.

Technical FAQs

Can this cable be used for power-through applications?

No. The NAC3FCB female connector is designed as an inlet only. For power-through applications, you would need a cable with two NAC3FCA male connectors.

Is this cable suitable for outdoor use?

Yes, when properly supported. The EPDM jacket provides UV resistance, but direct burial is not recommended unless specified with additional waterproofing.

Y Cable Splitter Lockable 3 Pin Power True 1 Connector Male To Female PowerCon Cable

Product Description

Product type	True 1 Male to Female IP68 3Pin Connector
Plug	IP 68 Waterproof connector
Rating Current	10A,13A,15A
Rating Voltage	250V
Material	pvc/rubber jacket,bare copper
End connector	IEC 60320 C7,IEC C5,IEC C13;Stripped end ;Tinned end
Color	Black.white,as your request
length	1m,2m,3m,5m,10m,as per your request
Application	Home Appliance
Sample	2-3pcs
OEM/ODM	available

Available Wire Styles:

Cord Type	Gauge/ # Conductors
SVT SJT	3C/18AWG; 3C/16AWG/14AWG
SJTW	3C/18AWG;3C/16AWG/14AWG
SPT-1;SPT-2;NISPT-2	18AWG/2C
