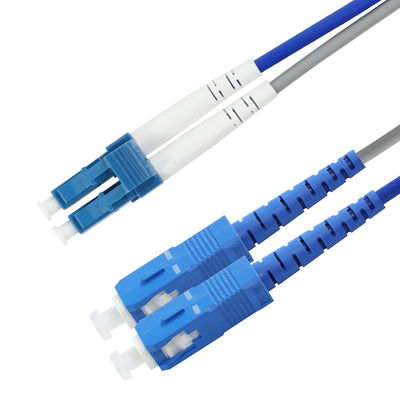

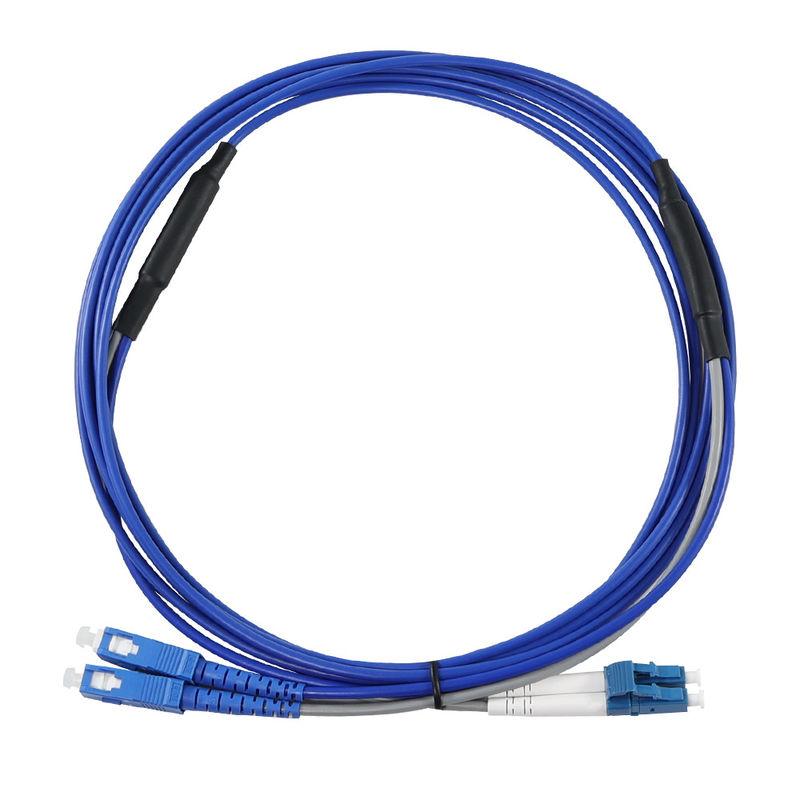

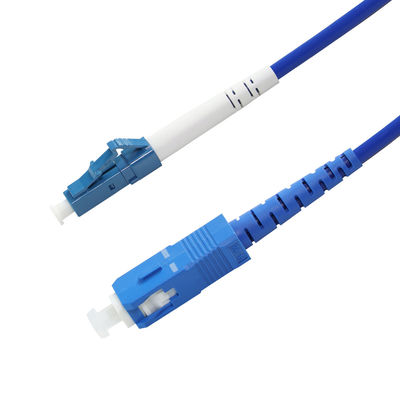

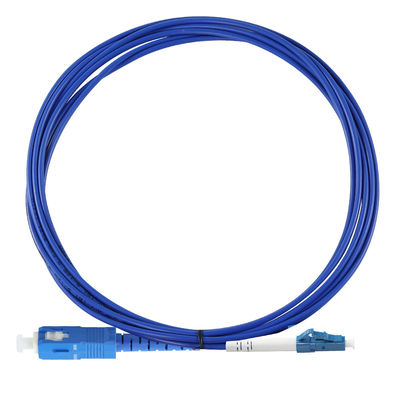

SC to LC Fiber Optic Patch Cable Duplex for Data Center FTTx

SC to LC Fiber Optic Patch Cable Duplex for Data Center FTTx
SC to LC Fiber Optic Patch Cable Duplex for Data Center FTTx SC to LC Fiber Optic Patch Cable Duplex for Data Center FTTx SC to LC Fiber Optic Patch Cable Duplex for Data Center FTTx SC to LC Fiber Optic Patch Cable Duplex for Data Center FTTx SC to LC Fiber Optic Patch Cable Duplex for Data Center FTTx SC to LC Fiber Optic Patch Cable Duplex for Data Center FTTx

Large Image :  SC to LC Fiber Optic Patch Cable Duplex for Data Center FTTx

Product Details:
Place of Origin: China
Brand Name: KUNCAN
Model Number: KC-LC-SC
Payment & Shipping Terms:
Minimum Order Quantity: 500Pieces
Price: ＄1.63/Piece 500-900Pieces
Packaging Details: PE Bag +Carton
Delivery Time: 16Days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 1000PCS Per/week
Contact Now

SC to LC Fiber Optic Patch Cable Duplex for Data Center FTTx

Description
Highlight:

Data Center Fiber Optic Patch Cable

,

Singlemode Fiber Optic Patch Cable

SC to LC Fiber Optic Patch Cable

Duplex Jumper Cord for Singlemode or Multimode Applications in Data Center and FTTx

Technical Specifications
Product Name SC to LC Fiber Optic Patch Cord
Connector Type SC/UPC or SC/APC to LC/UPC or LC/APC
Fiber Type Singlemode (OS2) / Multimode (OM1/OM2/OM3/OM4)
Structure Simplex / Duplex
Cable Jacket PVC / LSZH / OFNR / OFNP
Insertion Loss ≤0.3dB (Typical ≤0.2dB)
Return Loss ≥50dB (UPC) / ≥60dB (APC)
Cable Diameter 2.0mm / 3.0mm
Length Options 0.5m / 1m / 2m / 3m / 5m / 10m / Custom
Operating Temperature -20°C ~ +70°C
Jacket Color Yellow (SM), Orange/Aqua/Violet (MM)
Polish Type UPC / APC
Product Introduction

The SC to LC Fiber Optic Patch Cord is a high-quality jumper cable designed for seamless fiber optic connectivity between SC and LC interface devices. Ideal for structured cabling in FTTx, data centers, telecom rooms, and enterprise networks, it offers stable performance with low signal loss.

Available in singlemode and multimode, this cable meets demanding transmission requirements for both short and long distances.

Key Specifications
  • Connector Ends: SC (push-pull) to LC (small form factor)
  • Polish Types: UPC or APC on request
  • Mode Types: OS2 (SM), OM1/OM2/OM3/OM4 (MM)
  • Cable Jacket Options: PVC, LSZH
  • Lengths: 0.5m to 50m customizable
Color & Size Options
Fiber Mode Jacket Color Polish Options Application Range
OS2 Yellow UPC/APC Long-distance telecom, FTTx
OM1/OM2 Orange UPC Short-distance LANs
OM3 Aqua UPC 10G backbone, data centers
OM4 Violet / Aqua UPC 40G/100G parallel fiber networks
  • Cable Diameter: 2.0mm / 3.0mm
  • Structure: Simplex or Duplex
Product Features
  • High-performance low-loss ceramic ferrule connectors
  • Secure push-pull coupling with SC and compact LC interfaces
  • Flame-retardant jacket for indoor use
  • Color-coded jacket for easy mode identification
  • Precision polish for minimal signal degradation
Compatible Applications
  • Optical Distribution Frames (ODFs)
  • Fiber Termination Boxes
  • Media Converters and Switches
  • Telecom & Data Communication
  • Server rooms / LAN / SAN
  • FTTx (FTTH, FTTO, FTTB) deployments
Safety & Maintenance Tips
  • Keep connectors capped when not in use
  • Avoid sharp bending or stress near connectors
  • Clean connectors with fiber cleaning tools before mating
  • Store in dry, dust-free areas
SC to LC Fiber Optic Patch Cable Duplex for Data Center FTTx 0 SC to LC Fiber Optic Patch Cable Duplex for Data Center FTTx 1 SC to LC Fiber Optic Patch Cable Duplex for Data Center FTTx 2 SC to LC Fiber Optic Patch Cable Duplex for Data Center FTTx 3 SC to LC Fiber Optic Patch Cable Duplex for Data Center FTTx 4 SC to LC Fiber Optic Patch Cable Duplex for Data Center FTTx 5
Frequently Asked Questions (FAQ)
Q1. Are you factory or trade company?

A: We are factory of more than 16 years export experience.

Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery.

Q3. What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

Q4. Samples ?

A: 2-5 pieces free samples are available, freight on you. Delivery time usually is 2-3 days. Customized samples will take 5-10 days.

Q5. What is delivery time if we place an order?

A: It depends order quantities. Usually, we can deliver goods within 10-15 working days, for more QTY order, let's confirm when you place official order.

Q6. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.

Q7. How to ship out the cargo?

A: At your request, by sea, by express, all are available.
