High-Current Universal C13 to C6 Power Adapter Plug
3 Prong Input for Data Center/Office Appliances 100-240V 10A CE Certified
Product Specifications
| Attribute | Value |
| Product name | C13 to C6 Power Plug Adapter |
| Color | Black White OEM |
| MOQ | 150 |
| Customized | Yes |
| Customized support | Yes |
| Material | PVC+Copper |
| Usage | computer, home appliance, industrial, PDU |
| Rated Voltage | 125v/250v |
| Warranty | 12 Months |
Technical Parameters
| Parameter | Specification |
| Input Voltage | 100-240V AC, 50/60Hz |
| Output Voltage | 250V AC |
| Current Rating | 10A Max |
| Connector Type | IEC C13 (Female) to C6 (Male) |
| Cable Length | 1.8M/5.9ft |
| Temperature Range | -25°C to +40°C |
| Conductor Material | Oxygen-free Copper |
| Insulation Material | Flame-retardant PVC |

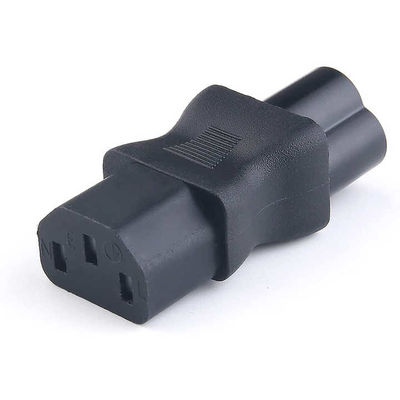

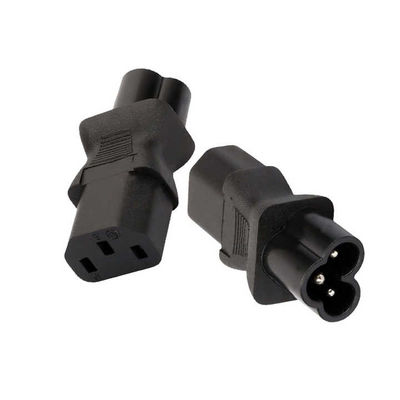

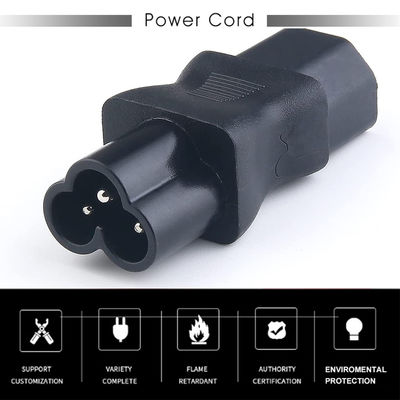

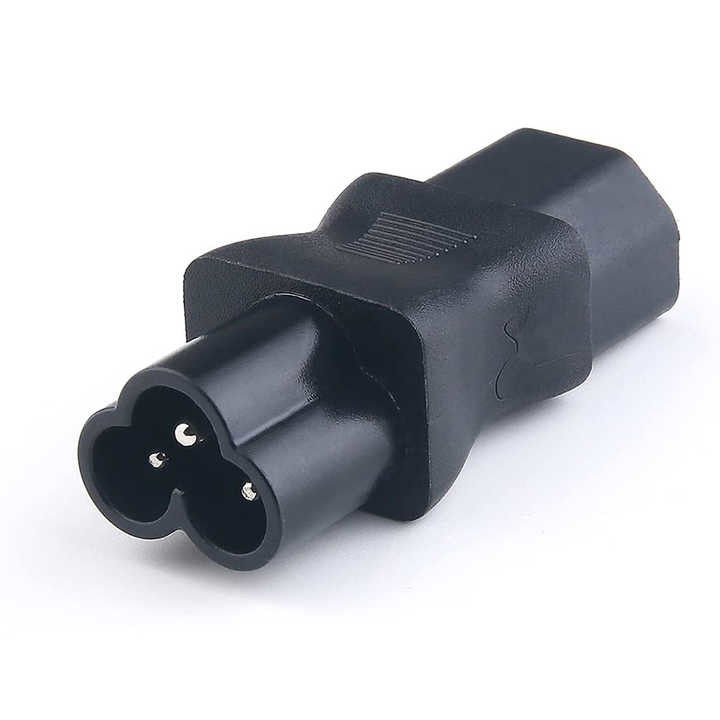

Product Overview
This industrial-grade power adapter converts C13 to C6 connections, engineered for stable power transmission in server racks, medical equipment, and industrial machinery. Features reinforced stress-relief connectors and 99.9% oxygen-free copper conductors for minimal energy loss.
Key Features
- C13-to-C6 Conversion: Converts standard IEC C13 socket to C6 ("Mickey Mouse") plug for slim laptops, projectors, and AV gear.
- Compact & Lightweight: Ultra-slim design (25mm × 15mm) ideal for tight spaces in power strips, UPS systems, or wall outlets.
- Safety Certified: VDE/CE/UL-listed connectors with flame-retardant housing.
- High-Flex Cable: 18 AWG triple-core silicone jacket cable (1.5M length) for tangle-free routing.
- Universal Compatibility: Bridges older C6 devices to modern C13 power sources without bulky adapters.
Color & Dimensions
Available Colors: Black (Standard), Custom OEM Colors Available
Connector Size:
- C13 Socket: 32.5×16.5×15mm
- C6 Plug: 23.5×16×14mm
Cable Diameter: 6.8mm
Product Highlights
Safety Assurance: Triple-layer insulation with flame-retardant casing and overcurrent protection
Durability Optimized: Zinc alloy contacts with 50μ" gold plating, 200kg/cm² compression-resistant housing
Universal Compatibility: Interconnects standard C13 power supplies with C6 devices
Compatible Equipment
- Server Rack PDUs
- Medical Imaging Systems
- Industrial Control Cabinets
- Data Storage Arrays
Note: Compatibility varies by device specifications
Applications
- Laptop Charging: Connect older Sony, Toshiba, or Panasonic laptops with C6 plugs to modern C13 power strips.
- AV Equipment: Power projectors, portable speakers, or LED displays with slim C6 inlets.
- UPS/PDU Integration: Link legacy devices to uninterruptible power supplies (UPS) or server PDUs.
- Travel-Friendly: Compact design fits easily in laptop bags for international setups (with regional plug adapters).
Safety Guidelines
- Certified with international electrical safety standards
- Professional installation recommended for high-load applications
- Avoid cable exposure to oils/solvents
- Maximum ambient temperature: 40°C
Why Choose This Adapter?
- Space-Saving: Slim plug profile avoids blocking adjacent outlets in crowded power strips.
- Secure Connection: Snug-fitting C6 plug resists accidental dislodging.
- Durability: Silicone cable withstands bending, abrasion, and mild chemical exposure.
- Global Readiness: Pair with travel adapters for use with 100-250V international outlets.
Certifications & Standards
- Safety: IEC 60320 (C6/C13), CE EMC
- Environmental: RoHS, REACH
Warranty Information
12-month warranty (excludes physical damage or liquid exposure).
Important Notes:
- Do not exceed 3A/750W total load - C6 plug has lower current rating than C13 socket.
- For dry indoor use only.
Critical Safety Warnings
- Verify device compatibility: C6 plug supports 250V - ensure your equipment matches input voltage.
- Do not daisy-chain adapters: Risk of overloading and fire.
- Disconnect during storms: No built-in surge protection.
Optional Configurations
- Right-Angle C6 Plug: For tight spaces behind furniture (+$5).
- 2M Heavy-Duty Cable: 16 AWG rubber jacket for industrial use (+$10).
- International Plug Bundle: Add EU/UK/AU travel adapters (+$15).
Compatible with IEC 320 C6/C7 devices. Not for high-power appliances (>3A), motors, or medical equipment.
Product Images
Frequently Asked Questions
Q1. Are you factory or trade company?
A: We are factory of more than 16 years export experience.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. Samples?
A: 2-5 pieces free samples are available, freight on you. Delivery time usually is 2-3 days. Customized samples will take 5-10 days.
Q5. What is delivery time if we place an order?
A: It depends order quantities. Usually, we can deliver goods within 10-15 working days, for more QTY order, let's confirm when you place official order.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q7. How to ship out the cargo?
A: At your request, by sea, by express, all are available.
