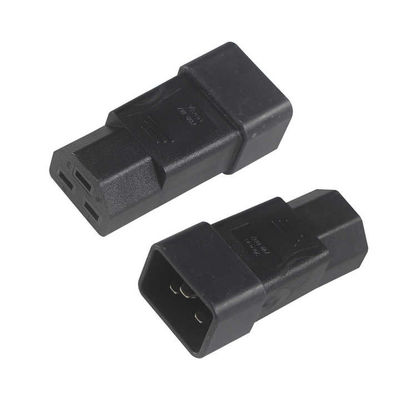

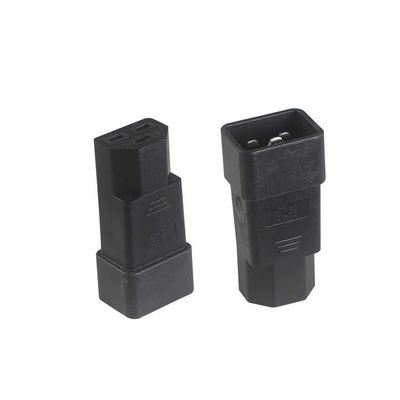

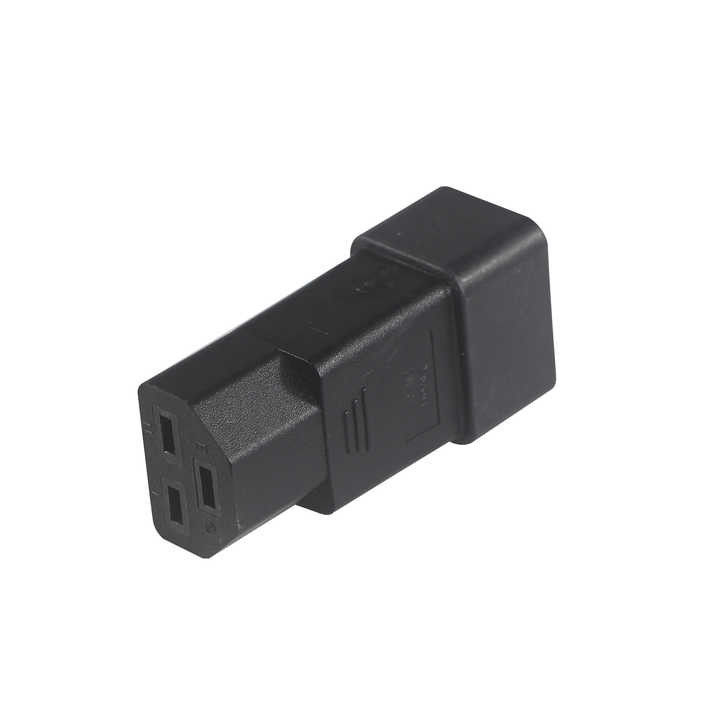

Power Input CE Certified Power Adapter Plug for Industrial Equipment/Medical Devices
High-performance C13 to C20 power adapter plug designed for industrial and medical applications with 100-240V AC input.
Product Attributes
| Attribute | Value |
| Product name | C13 to C20 Power Plug Adapter |
| Color | Black White OEM |
| Customized | Yes |
| Customized support | Yes |
| Material | PVC+Copper |
| Usage | Computer, home appliance, industrial, PDU |
| Rated Voltage | 125V/250V |
| Warranty | 12 Months |
Detailed Technical Specifications
| Parameter | Specification |
| Input Connector Type | IEC C13 (Female) |
| Output Connector Type | IEC C20 (Male) |
| Rated Voltage | 100-250V AC |
| Current Rating | Up to 16A |
| Conductor Material | 99.9% Oxygen-Free Copper |
| Jacket Material | Flame-Retardant PVC (750°C Resistance) |
| Wire Gauge | 14AWG (2.08mm²) |
| Temperature Range | -40°C to +105°C |
| Certifications | RoHS Compliant, CE Marked |
Product Introduction
This heavy-duty C13 to C20 adapter enables secure power transfer between standard computer/server racks and high-power industrial equipment. Featuring industrial-grade construction with reinforced strain relief, it ensures stable performance in data centers, manufacturing facilities, and telecom installations.
Key Features
- High-Power Conversion: Converts IEC C13 socket to C20 plug for connecting high-load devices (PDUs, servers, industrial equipment)
- Heavy-Duty Capacity: Supports 16A/250V (4000W) continuous load for critical power applications
- Safety Certified: UL/CE/VDE-listed connectors with flame-retardant silicone jacket (IP44 optional)
- Industrial Durability: 10 AWG triple-core cable with nickel-plated contacts and reinforced strain relief
- Plug-and-Play: Seamlessly integrates C20 devices with C13 power sources (e.g., UPS systems, server racks)
Color & Dimensions
Standard Options:
- Black/Gray Dual-Tone (Default)
- Custom Colors (MOQ 500pcs)
Physical Measurements:
- Cable Length: 1.8M / 3M / 5M (Customizable)

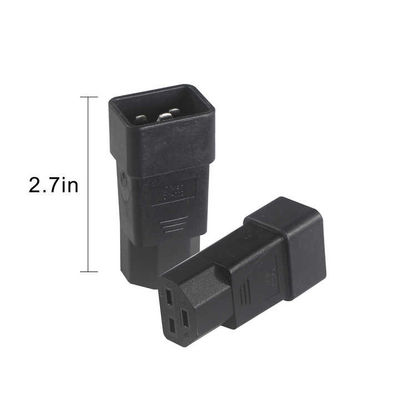

- Connector Size: C13 (31.8×17.8mm), C20 (38.6×21.8mm)
Product Highlights
1. Military-Grade Durability
Triple-layer injection-molded connectors withstand 10,000+ mating cycles
2. Intelligent Safety Design
Integrated locking grooves prevent accidental disconnection
3. Universal Compatibility

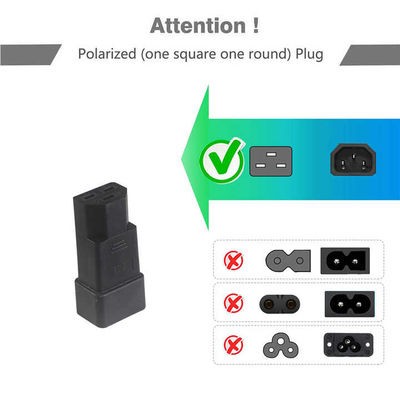

Converts standard C13 outlets to high-power C20 inputs
4. Environmental Protection
IP67-rated options available for outdoor/moist environments
Compatible Equipment
- Server racks & blade chassis
- Industrial CNC machines
- Medical imaging devices
- UPS battery backup systems
- Renewable energy inverters
Applications
- Data Centers: Connect high-power PDUs or blade servers to UPS systems with C13 outlets
- Industrial Machinery: Power CNC machines, laser cutters, or medical imaging devices
- Broadcast & Events: Link high-wattage lighting rigs, amplifiers, or VR systems
- Renewable Energy: Integrate inverters or battery banks into industrial power networks
Safety Compliance
Critical Notes:
- Verify equipment power requirements before use
- Not for permanent installation - periodic inspection required
- Avoid coiling cable during operation to prevent overheating
Manufactured under ISO 9001:2015 standards. Contact supplier for full test reports.
Why Choose This Adapter?
- Zero Downtime: Reinforced contacts handle frequent plugging cycles in demanding environments
- Full Grounding Protection: Triple-core design ensures safe operation for metal-chassis equipment
- Flexible & Durable: High-flex silicone cable resists extreme temperatures and mechanical stress
- Global Compliance: Meets IEC 60320 standards for interoperability with C19/C20 systems
Certifications & Standards
- Safety: IEC 60320 (C13/C20), CE EMC/LVD
- Environmental: RoHS, REACH
Warranty & Notes
12-month warranty (excludes physical misuse or liquid damage).
- For indoor/outdoor use with optional IP44 kit
- Verify device voltage compatibility (250V input required)
Critical Safety Warnings
- Do not exceed 16A/4000W total load - ensure circuit breakers match rated capacity
- Secure loose cables - tension may damage connectors
- Disconnect during maintenance - no surge/overload protection included
Optional Configurations
- IP44 Weatherproof Kit: Silicone seals for dusty/humid environments (+$30)
- Shielded Cable: EMI/RFI protection for sensitive equipment (+$40)
- Right-Angle C20 Plug: For tight spaces in server racks (+$15)
Compatible with IEC 320 C19/C20 systems. Not for DC power, motors, or residential appliances.
For 4000W+ loads, pair with a dedicated 20A circuit. Always consult an electrician for high-power installations
