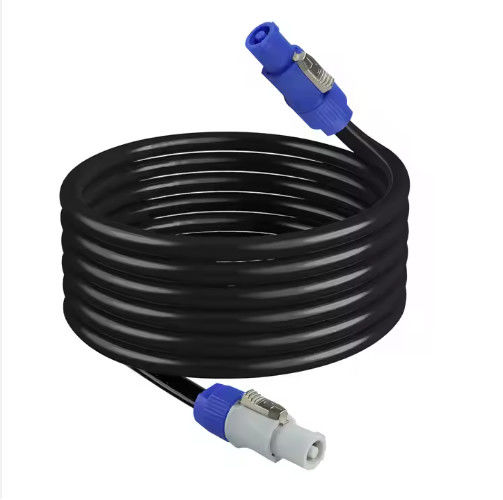

15A 250V Flame-Retardant PowerCON-Compatible Industrial Power Supply

15A 250V Flame-Retardant PowerCON-Compatible Industrial Power Supply
15A 250V Flame-Retardant PowerCON-Compatible Industrial Power Supply 15A 250V Flame-Retardant PowerCON-Compatible Industrial Power Supply 15A 250V Flame-Retardant PowerCON-Compatible Industrial Power Supply 15A 250V Flame-Retardant PowerCON-Compatible Industrial Power Supply 15A 250V Flame-Retardant PowerCON-Compatible Industrial Power Supply 15A 250V Flame-Retardant PowerCON-Compatible Industrial Power Supply

Large Image :  15A 250V Flame-Retardant PowerCON-Compatible Industrial Power Supply

Product Details:
Place of Origin: China
Brand Name: KUNCAN
Model Number: KC-02
Payment & Shipping Terms:
Minimum Order Quantity: 500 pieces
Price: $0.53/pieces 500-999 pieces
Packaging Details: PE Bag
Delivery Time: 16Days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 1000PCS/Per Week
Contact Now

15A 250V Flame-Retardant PowerCON-Compatible Industrial Power Supply

Description
Rated Current: 15A Rated Voltage(AC.V): 250V
Size: Custom Cable Length: Can Be Customized
Power Cable: 3x1.5mm^2 DMX Cable: 2 Cores Wire+Shield Wire
Jacket: Rubber
Highlight:

15A Industrial Stage Audio Power Supply

,

Flame-Retardant Audio Power Supply

Flame-Retardant Industrial Stage Audio Power Supply 15A Rated Current 3-Pin IP44-Rated Locking PowerCON-Compatible Connector
Product Specifications
Attribute Value
Rated Current 15A
Rated Voltage(AC.V) 250V
Size Custom
Cable Length Can be customized
Power Cable 3x1.5mm²
DMX Cable 2 Cores Wire+Shield Wire
Jacket Rubber
Product Description

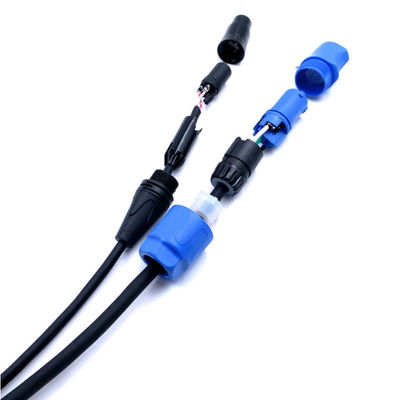

3-Pin XLR to Powercon True1 Hybrid Cable
Power + DMX Signal in a Single Cable

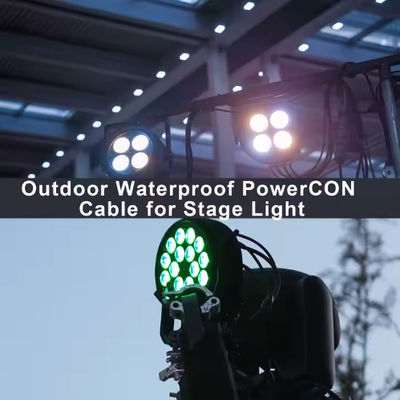

This professional hybrid cable combines a 12A/250V Powercon True1 power connector and a 3-pin XLR DMX signal line, designed for stage lighting, tour rigs, and moving heads.

Key Features:
  • Dual Functionality: Eliminates separate power and DMX cables
  • 12A/250V Rating: Powers LED fixtures and moving heads
  • 110 Ω Shielded DMX Line: Signal integrity for long runs
  • Neutrik/Conus Connectors: Road-tested durability

Explore our full range of pro audio cables or see how this cable performs on tour.

Technical Specifications
Parameter Specification
Voltage/Current Rating 250V AC, 20A
Contact Resistance ≤3 mΩ
Insulation Resistance >100 MΩ (after damp heat test)
Dielectric Strength 4 kV DC / 2.8 kV AC
Material Shell: Polyamide (PA 6.6 30% GR), Contacts: Bronze (CuNi1Si0.2)
Temperature Range -25°C to +80°C (operational)
Mechanical Life >1,000 mating cycles
Protection Rating IP44 (dustproof and splash-resistant)
Certifications UL 1977, EN 61984, IEC 60309-compliant
Connector Type 3-pin PowerCON (locking mechanism, pre-mating ground contact)
Wire Gauge Compatibility 14-10 AWG (compatible with IEC 60309 Series II standards)
Mounting Front panel-mount
Safety Features Polarized design (anti-mismating), quick-lock mechanism; not for live disconnection
Applications Professional audio systems, industrial machinery, rugged power distribution
Key Notes
  • Voltage/Current: Aligns with IEC 60309 Series II standards for industrial connectors, rated for 20A/250V.
  • Materials: Polyamide shell ensures durability, while bronze contacts provide low resistance and high conductivity.
  • Safety Compliance: Includes pre-mating ground contact to enhance safety in demanding environments.
  • Protection: IP44 rating ensures resistance to dust and water splashes, suitable for outdoor and industrial use.
  • Certifications: Meets UL, EN, and IEC standards for global compatibility.

For detailed technical drawings or regional specifications (e.g., North American vs. European configurations), refer to the IEC 60309 standardization documents or manufacturer datasheets.

15A 250V Flame-Retardant PowerCON-Compatible Industrial Power Supply 0 15A 250V Flame-Retardant PowerCON-Compatible Industrial Power Supply 1 15A 250V Flame-Retardant PowerCON-Compatible Industrial Power Supply 2 15A 250V Flame-Retardant PowerCON-Compatible Industrial Power Supply 3 15A 250V Flame-Retardant PowerCON-Compatible Industrial Power Supply 4
Frequently Asked Questions (FAQ)
Q1. Are you factory or trade company?
A: We are factory of more than 16 years export experience.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. Samples ?
A: 2-5 pieces free samples are available, freight on you. Delivery time usually is 2-3 days. Customized samples will take 5-10 days.
Q5. What is delivery time if we place an order?
A: It depends order quantities. Usually, we can deliver goods within 10-15 working days, for more QTY order, let's confirm when you place official order.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q7. How to ship out the cargo?
A: At your request, by sea, by express, all are available.
